Alat Perekam Data (Data Logger) Suhu LCD dengan Probe Eksternal LogTag® TRED30-16U

Link Produk: TRED30-16U

Deskripsi

LogTag ^® TRED30-16U adalah varian USB-C terbaru dari TRED30-16, yang menawarkan opsi pengambilan data yang lebih baik sekaligus mempertahankan fungsionalitas andal dari pendahulunya. Selain koneksi 3-pin tradisional yang terintegrasi dengan antarmuka LogTag ^® LTI-HID untuk pengumpulan data, model ini juga dilengkapi port USB-C yang praktis, memungkinkan pengguna untuk mengambil data dengan cepat dan mudah tanpa perlu cradle atau hub.

TRED30-16U mengukur dan menyimpan lebih dari 17.500 pembacaan suhu dalam rentang -40 °C hingga +99 °C (-40 °F hingga +210 °F), dengan dukungan untuk probe pintar maupun tradisional. Layarnya memberikan tampilan sekilas yang jelas tentang setiap penyimpangan suhu dalam 59 hari terakhir dan saat ini, beserta informasi seperti suhu saat ini, waktu, status perekaman, dan masa pakai baterai.

Batas alarm yang telah ditetapkan memicu alarm visual, mengubah indikator status dari ✓ menjadi ✗, dengan opsi untuk membunyikan peringatan audio. Penanda hari juga tersedia untuk memastikan pelacakan yang jelas terhadap setiap pelanggaran suhu.

Rincian mengenai setiap perjalanan dalam 60 hari sebelumnya dapat diperiksa langsung dengan memeriksa riwayat statistik pada tampilan pencatat atau secara lebih rinci dengan mengunduh data yang dicatat melalui dudukan Antarmuka LogTag ^® standar ke perangkat lunak pengoperasian Penganalisis LogTag ^{® .}

Spesifikasi

Product Model	TRED30-16U (Replaceable Battery)
External Sensor Measurement Range	-40 °C to +99 °C (-40 °F to +210 °F)
Operating Temperature Range	-30°C to +60°C (-22°F to +140°F)
Storage Temperature Range	-10°C to +40°C (14°F to +104°F)
Rated Temperature Reading Accuracy	Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F). Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F). Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F). Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration.
Rated Temperature Reading Resolution	0.1°C (0.2°F) for measurements -40°C to +50°C (-40°F to +122°F). 0.2°C (0.4°F) for measurements +50°C to +70°C (+122°F to +158°F). 0.3°C (0.5°F) for measurements +70°C to +80°C (+158°F to +176°F). 0.4°C-0.6°C (0.7°F to 1°F) for measurements +80°C to +99°C (+176°F to +210°F). LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.
Sensor Reaction Time	Typically less than 2 minutes (T90) in moving air (1m/s) for ST100T, ST100H and ST100S types
Recording Capacity	17,526 temperature readings. 60 days @ 5min logging. Day summary statistics memory (for display on LCD): up for 30 days of Max/Min/duration and alarm trigger statistics
Sampling Interval	Configurable from 30 seconds to hourly
Logging Start Options	Push button start or specific date and time. Optional start delay of up to 18 hours
Recording Indication	State indicator “RECORDING”
Download Time	Typically less than 10 seconds for full memory (17,526 readings) using the USB connection, depending on computer
Environmental	IP61 (when vertically mounted or hung)
Power Source	3V CR2032 LiMnO2 coin cell battery, user replaceable
Battery Life	1 year storage, followed by 1 year of operation with normal use (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly) NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible.
Real Time Clock	Built-in real time clock Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day) Rated temperature coefficient is -0.034 ±0.006ppm/°C (i.e. typically +/- 0.00294 seconds/day/°C).
Standard Remote Sensor Cable Length	Standard: 1.5m (4’11″) Extended: 3m (9’10″) (Recommended maximum)
Remote Sensor Cable Type	PTFE (FDA food contact rated), coaxial
Size	93mm(H) x 54.5mm(W) x 8.6mm(T)
Weight	41g
Case Material	Polycarbonate

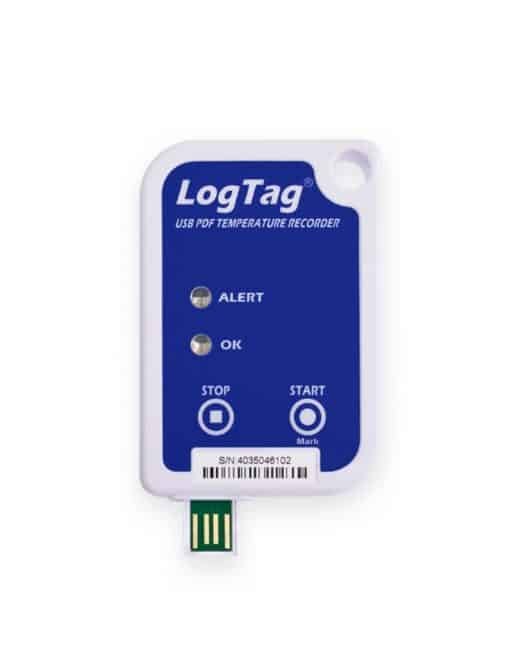

Alat Pencatat Data (Data Logger) Suhu PDF USB Sekali Pakai LogTag® USRIC-8

Link Produk: USRIC-8

Deskripsi

Dirancang sebagai pencatat suhu sekali pakai, hemat biaya, dan andal, LogTag® USRIC-8 mengukur dan menyimpan pembacaan suhu waktu nyata pada rentang pengukuran -30°C hingga +60°C (-22°F hingga +140°F).

Data dari LogTag® USRIC-8 yang diunduh menggunakan LogTag® Xpress dapat diunggah dan dilihat di LogTag® Online tanpa perlu membuat akun.*

USRIC-8 menggabungkan semua fitur pencatat suhu canggih dengan memori 8.000 log dengan masa simpan hingga dua tahun sebelum konfigurasi (dalam mode hibernasi standar) dan masa operasi 6 bulan dalam paket yang kuat dan murah.

USRIC-8 terhubung langsung ke USB komputer untuk memudahkan konfigurasi pengguna dalam berbagai kondisi perekaman dan peringatan. Setelah diunduh, USRIC-8 secara otomatis menghasilkan laporan PDF yang sangat detail dengan opsi untuk mengunduh data menggunakan perangkat lunak LogTag® Analyzer yang tersedia gratis untuk analisis yang lebih detail.

Indikator ALERT berwarna merah memberikan indikasi langsung – tanpa perlu mengakses PC – jika ada pembacaan yang berada di luar batas yang ditentukan saat unit dikonfigurasi. Indikator OK berwarna hijau memberikan konfirmasi visual langsung bahwa unit sedang beroperasi.

*Mengunggah file ke LogTag® Online diaktifkan secara default pada instalasi baru LogTag® Xpress (versi 1.2.2 dan seterusnya).

Spesifikasi

Product Model	USRIC-8.
Sensor Measurement Range	-30°C to +60°C (-22°F to +140°F).
Operating Temperature Range	-30°C to +60°C (-22°F to +140°F).*
Storage Temperature Range	0°C to +40°C (32°F to +104°F).
Rated Temperature Reading Accuracy	Better than ±0.5°C (±0.9°F) for -5°C to +30°C (23°F to +86°F). ±0.8°C (±1.5°F) or better for measurements in other areas of rated range. Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration.
Rated Temperature Reading Resolution	Less than 0.1°C/F. LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.
Sensor Reaction Time	Typically less than 5 minutes (T90) in moving air (1m/s).
Recording Capacity	8,001 temperature readings. 27 days @ 5min logging, 80 days @ 15min logging.
Sampling Interval	Configurable from 1 minute to 18 hours.
Logging Start Options	Push button start or specific date & time.
Recording Indication	Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator.
Download Time	Typically in less than 20 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer (if configured).
Environmental	IEC 60529: IP64 with USB cap fitted.
Power Source	CR2032 3V LiMnO2 Battery (Fixed).
Battery Life	2 years storage, followed by 6 months normal use.
Real Time Clock	Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Connection Interface	USB 2.0, A-type plug.
Software	PDF Reader, LogTag® Analyzer 2.5 or higher, LogTag Xpress, LogTag Online.
Multi-language Support	Multi-language support for English, Spanish, French, Russian and German.
Size	93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap.
Weight	31g.
Case Material	Polycarbonate.
Footnote	*(-30°C to +60 °C applies to Loggers with serial numbers 4x35x22689 or greater. Loggers with serial numbers prior to this have an operating temperature range of -25°C to +60°C).

Alat Perekam Data (Data Logger) Kelembaban dan Suhu Multi-Trip HAXO-8

Link Produk: HAXO-8

Deskripsi

LogTag® HAXO-8 Multi-Use Humidity and Temperature Logger mengukur dan menyimpan hingga 8000 set pembacaan suhu dan kelembapan beresolusi tinggi pada rentang pengukuran 0 hingga 100%RH dan -40°C hingga +85°C (-40°F hingga +185°F).

Terbungkus dalam casing polikarbonat yang kuat dan tahan lama – HAXO-8 dilengkapi dengan pengaturan sensor suhu unik yang menyediakan waktu reaksi cepat terhadap perubahan suhu dan jam waktu nyata yang menyediakan stempel tanggal/waktu untuk setiap pembacaan suhu.

Dengan menggunakan Antarmuka LogTag dan perangkat lunak pendamping LogTag yang tersedia bebas, LogTag Analyzer, LogTag mudah diatur untuk merekam berbagai kondisi termasuk mulai yang tertunda, interval pengambilan sampel, jumlah pembacaan, jumlah pembacaan yang terus-menerus atau tetap, dan konfigurasi kondisi untuk mengaktifkan indikator ALERT.

Pembacaan diunduh menggunakan LogTag Analyzer yang menyediakan fasilitas untuk membuat grafik, memperbesar, mencantumkan statistik data dan memungkinkan mengekspor data ke aplikasi lain seperti Excel.

LogTag® HAXO-8 mematuhi standar internasional yang relevan untuk perangkat pemantauan suhu: FDA 21 CFR Bagian 11, EC Lampiran 11, Peraturan Barang Berbahaya IATA 2018 Edisi ke-59, FCC, CE, RCM, dan RoHS. Hal ini menunjukkan kualitas dan kesesuaian LogTag® HAXO-8 untuk aplikasi pemantauan suhu yang membutuhkan akurasi dan konsistensi.

Spesifikasi

Product Model	HAXO-8.
Sensor Measurement Range	-40°C to +85°C (-40°F to +185°F).
Operating Temperature Range	-40°C to +85°C (-40°F to +185°F).
Storage Temperature Range	+10°C to +50°C (+50°F to +122°F).*
Humidity Measurement Range	0% RH to 100% RH (non-condensing), with limitations.
Humidity Operating Range	0% RH to 100% RH (non-condensing), with limitations.
Storage Humidity Range	20% RH to 60% RH.*
Rated Temperature Reading Accuracy	Better than ±0.45°C (±0.8°F) for +0°C to +50°C (+32°F to +122°F), typically ±0.3°C (0.6°F). Better than ±0.8°C (±1.4°F) for +50°C to +80°C (+122°F to +176°F), typically ±0.5°C (0.9°F). Better than ±0.95°C (±1.7°F) for -40°C to +0°C (-40°F to +32°F), typically ±0.6°C (1.1°F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration.
Rated Humidity Reading Accuracy	Better than ±5%RH for 10%RH to 80%RH. Better than ±6%RH for 0%RH to 10%RH. Better than ±7%RH for 80%RH to 100%RH. Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration.
Humidity Resolution	Better than 0.1% RH.
Temperature Resolution	Better than 0.1°C or 0.1°F
Recording Capacity	8,003 pairs of humidity and temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.
Sampling Interval	Configurable from 30 seconds to several hours.
Logging Start Options	Push button start or specific date & time. Optional start delay (30 seconds to 18 hours).
Recording Indication	Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator.
Download Time	Typically less than 10 seconds for full memory, depending on computer or readout device used.
Environmental	IP61 (when hung or mounted vertically).
Power Source	CR2450 3V LiMnO2 Battery (Fixed).
Battery Life	Fixed Battery. 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly).
Real Time Clock	Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Size	86mm(H) x 54.5mm(W) x 8.6mm(T).
Weight	34g.
Case Material	Polycarbonate.
*Optimal Storage Condition	For optimal Humidity logger storage, store units in original packaging in an air conditioned area. Storage temperature shall be in the range of 10°C to 50°C and humidity at 20%RH to 60%RH. Ensure good ventilation (fresh air supply) in storage area to avoid high concentrations of volatile chemicals. Do not store units in the same room as solvents or any other strong smelling products.
