Description
Features
- Guided pH calibration following on-screen prompts in HOBOconnect app
- Rugged PVC housing for deployment in both freshwater and saltwater environments
- Quick and easy data offload via Bluetooth to mobile devices or Windows computers
- Water detection system for longer battery life and less maintenance
- Potentiometric pH electrode with plastic body, gel electrolyte, and double cloth junction
- User-replaceable battery, pH electrode, and anti-biofouling copper guard
- Accuracy of ±0.10 pH units within ±10°C of temperature at calibration
What’s in the box

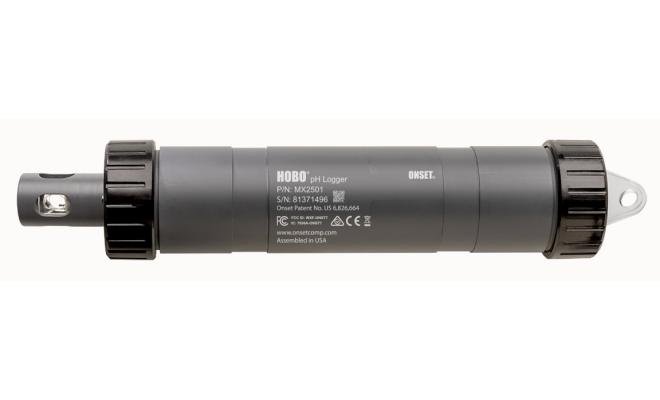

- MX2501 pH and Temperature Data Logger
- pH electrode
- Bottle of storage solution that can also be used as a storage container for the electrode
- Anti-biofouling copper guard
- Tube of silicone grease
- AA battery
Specifications
| pH Sensor | ||
| pH | mV | |
| Range | 2.00 to 12.00 pH | -512 to 512 mV |
| Accuracy | ±0.10 pH units within ±10°C of temperature at calibration | ±0.20 mV |
| Resolution | 0.01 pH | 0.02 mV |
| Response Time | 1 minute typical to 90% at constant temperature in stirred water | |
| Sample Ionic Strength | ≥ 100 µS/cm | |
| Temperature Sensor | ||
| Range | -2° to 50°C (28.4° to 122°F) | |
| Accuracy | ±0.2°C (±0.36°F) | |
| Resolution | 0.024°C at 25°C (0.04°F at 77°F) | |
| Response Time | 7 minutes typical to 90% in stirred water | |
| Logger | ||
| Operating Range | -2° to 50°C (28.4° to 122°F) — non-freezing | |
| Depth Rating | IP68; waterproof to 40 m (131 ft) | |
| Water Detection | Water conductivity level of 100 µS/cm or greater is necessary for reliable detection of water. Deionized water or water below 100 µS/cm may not be detected. The water conductivity circuit may not reliably detect water that has frozen around the electrodes, i.e. below 0°C (32°F). |
|
| Radio Power | 1 mW (0 dBm) | |
| Transmission Range | Approximately 30.5 m (100 ft) line-of-sight in air | |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) | |
| Logging Rate | 1 second to 18 hours | |
| Logging Modes | Fixed interval (normal, statistics) or burst | |
| Memory Modes | Wrap when full or stop when full | |
| Start Modes | Immediate, push button, date & time, or next interval | |
| Stop Modes | When memory is full, push button, date & time, or after a set logging period | |
| Time Accuracy | ±1 minute per month 0° to 50°C (32° to 122°F) | |
| Battery Type | One AA 1.5 Volt, user-replaceable | |
| Battery Life | 1 year typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always On selected in software. 2 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Off Water Detect enabled in software. 3 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off selected in software. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life. |
|
| pH Electrode Typical Minimum Life | 6 months in sample with ionic strength ≥ 100 µS/cm | |
| Memory | 152 KB (43,300 measurements, maximum) | |
| Full Memory Download Time | Approximately 60 seconds; may take longer the farther the mobile device is from the logger | |
| Dimensions | 22.86 x 4.27 cm (9.0 x 1.68 inches); mounting hole 0.64 cm (0.25 inches) | |
| Weight | 268.2 g (9.46 oz) | |
| Buoyancy | Fresh water: 13.6 g (0.48 oz) negative Salt water: 19.6 g (0.69 oz) negative |
|
| Wetted Materials | Logger: PVC housing and sensor end cap, polycarbonate closure caps and mounting end cap with a TPE switch pH electrode: plastic-bodied with Pellon® junctions and gel electrolyte, glass pH sensor bulb |
|
|
 |
The CE Marking identifies this product as complying with all relevant directives i | |
