Description
Features
- Convenient wireless setup and download via Bluetooth

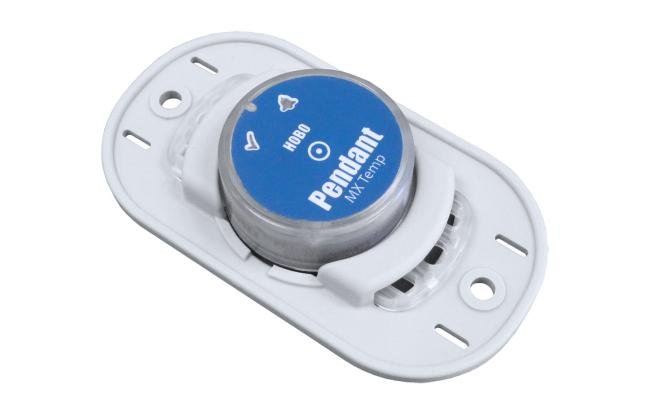

- Mounting boot included
- Large memory stores 96,000 measurements
- Waterproof to 30 meters (100 feet)
- User-replaceable battery
- Mounting tabs for fast, easy deployment
- LED indicates when temperature exceeds set threshold
- Works with Onset’s free HOBOconnect app
- ±0.5°C (±0.9°F) accuracyf
Specifications
Temperature Sensor (MX2201 and MX2202)
Range:
-
-20° to 70°C in air-4° to 158°F in air-20° to 50°C in water-4° to 122°F in water
Accuracy:
-
±0.5°C from -20° to 70°C±0.9°F from -4° to 158°F
Resolution:
-
0.04°C0.072°F
Drift:
-
<0.1°C per year<0.18°F per year
Response Time:
-
17 minutes typical to 90% in air moving 1 m/s, unmounted7 minutes typical to 90% in stirred water, unmounted
Light Sensor (MX2202)
Range:
-
0 to 167,731 lux0 to 15,582 lum/ft2
Accuracy: ±10% typical for direct sunlight (see Light Measurement on page 2 for more details)
Logger
Logger Operating Range:
-
-20° to 70°C in air-4° to 158°F in air
Buoyancy (Fresh Water):
-
2 g positive0.07 oz positive
Waterproof:
-
To 30.5 mTo 100 ft
Radio Power:
-
1 mW0 dBm
Transmission Range:
-
Approximately 30.5 m line-of-sightApproximately 100 ft line-of-sight
Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
Logging Rate: 1 second to 18 hours
Time Accuracy:
-
±1 minute per month at 25°C±1 minute per month at 77°F
Battery: CR2032 3V lithium, user replaceable
Battery Life:
-
1 year typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always On enabled in software.2 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always On disabled in software.Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.To ensure proper battery installation, see Battery Information for detailed instructions on replacing the battery.
Memory: 96,000 measurements
Full Memory Download Time: Approximately 45 seconds; may take longer the farther the device is from the logger
Wetted Materials: Polypropylene case, EPDM O-ring
Dimensions:
-
3.35 x 5.64 x 1.8 cm1.32 x 2.22 x 0.69 inches
Weight:
-
12.75 g0.45 oz
Environmental Rating: IP68
