Description
Specification
Model |
MK-CW-01-0.6K |
|---|---|
| Scale Division | 0.1g |
| Weighing Range | 5~600g |
| Accuracy | ±0.5g |
| Weighing Speed | 180 pcs/min |
| Belt Speed | 5~90 meter/min |
| Platform Size | 330 × 310 mm |
| Height | 750 ± 50 mm |
| Belt Size | 300 × 250 mm |
| Belt Material | PU (White) |
| Belt Thickness | 0.7 mm |
| Tested Object Size | 50~240×20~150×10~180mm |
| Display Size | 10 inch |
| Alarm Light | 3-color signal light |
| Alarm Horn | Optional |
| Holder/Frame Material | 304 Stainless Steel |
| Weigher Platform Material | 304 Stainless Steel |
| Data Storage | 100 sets of parameters and 1 million weighing results |
| Communication | RS485 (Modbus RTU)/Modbus TCP/IP |
| Rejection Mechanism | Swing-arm type, push plat type (optional) |
| Segments | 3 levels |
| Air Pressure | 0.4~0.6 Мpа |
| IP Grade | IP54 |
ㅤ

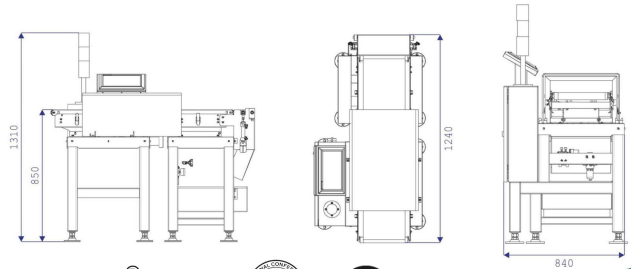

Dimension

ㅤ
ㅤ
