Description
Instrumen ini merupakan meter transmisi yang kecil dan portabel, produk saku yang sesungguhnya. Alat ini cocok untuk menguji secara bersamaan tingkat penolakan IR dan UV, transmitansi cahaya tampak, penolakan energi surya total (TSER), dan koefisien perolehan panas surya (SHGC) dari berbagai bahan film (seperti film surya, film tahan ledakan, dll.). Instrumen ini memiliki berbagai kombinasi parameter tampilan, dan pengguna dapat memilih sesuai kebutuhan.
LS161H Windows Film Tester For Advantages
| Parameter Name | Parameter Value |
|---|---|
| UV Peak Wavelength | 365nm |
| Visible Light Peak Wavelength | 380nm-760nm,CIE function of photopic vision |
| IR Peak Wavelength | Peak wavelength 940nm, 1400nm and Full IR |
| Solar Heat Gain Coefficient | SHGC( 0.000 ~ 1.000) |
| Total Solar Energy Rejection | TSER（0.0%-100%) |
| Resolution | 0.1% |
| Accuracy | ±2% (colorless uniform light-transmitting material) |
| Maximum Sample Thickness | 0.8mm |
| Display | 240*240 dot matrix TFT color screen |
| Weight | about 70g (exclude batteries) |
| Size | 101mm *52mm *25.5mm (L*W*H) |
Feature
Seven-band test, more comprehensive measurement

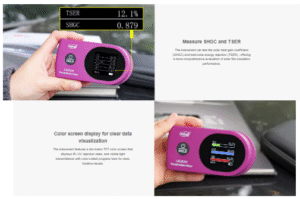

The instrument supports seven optical parameter tests: UV, visible light, IR 940nm, IR 1400nm, full-IR, SHGC and TSER, meeting the measurement needs of different thin film materials.
Easily switch between multiple display modes
Different display modes such as rejection rate, transmittance, single display transmittance, etc. can be set.
Compact and Portable
The pocket-sized transmission meter is lightweight and easy to carry, fitting seamlessly into your pocket for convenient measurements on the go.
Real-time dynamic calibration function
The solar film transmission meter has real-time dynamic calibration function. It will self-calibrate if no material in the test slot which is to ensure the accurate test data.
Lock data by pressing HOLD button
Press HOLD button can lock data on the screen. Taking away the material, the data is still showed on the screen.
Auto-rotating screen
The instrument’s display can rotate 180°, making it easier to operate and read measurement data.
