Description
Features
- Onset’s smallest temperature data logger
- Waterproof to 300 meters (1,000 feet)
- Data readout in less than 30 seconds via fast Optic USB interface
Specifications
Temperature Sensor
Operation Range*:
-
-20° to 70°C in air;-4° to 158°F in air;maximum sustained temperature of 30°C (86°F) in water*
Accuracy:
-
±0.21°C from 0° to 50°C , see manual for plot±0.38°F from 32° to 122°F , see manual for plot
Resolution:
-
0.02°C at 25°C , see manual for plot0.04°F at 77°F , see manual for plot
Response Time:
-
5 minutes in water; 12 minutes in air moving 2 m/sec;20 minutes in air moving 1 m/sec (typical to 90%)
Stability (Drift):
-
0.1°C per year0.18°F per year
Logger
Real-time Clock: ±1 minute per month 0° to 50°C (32° to 122°F)
Battery: 3 Volt lithium, non-replaceable
Battery Life (Typical Use): 5 years with 1 minute or greater logging interval
Memory (Non-volatile): 64K bytes memory (approx. 42,000 12-bit temperature measurements)
Weight:
-
19.6 g0.69 oz
Dimensions: 3.0 × 4.1 × 1.7 cm (1.2 × 1.6 × 0.68 in.); mounting bail 4.6 mm (3/16 in.) diameter hole
Wetted Materials: Epoxy case
Waterproof: To 305 m (1000 ft.)
Logging Interval:
-
Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to HOBOware software manual.
Launch Modes: Immediate start, delayed start, triggered start
Offload Modes: Offload while logging; stop and offload
Battery Indication: Battery level can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
Environmental Rating: IP68
NIST Certificate: Available for additional charge

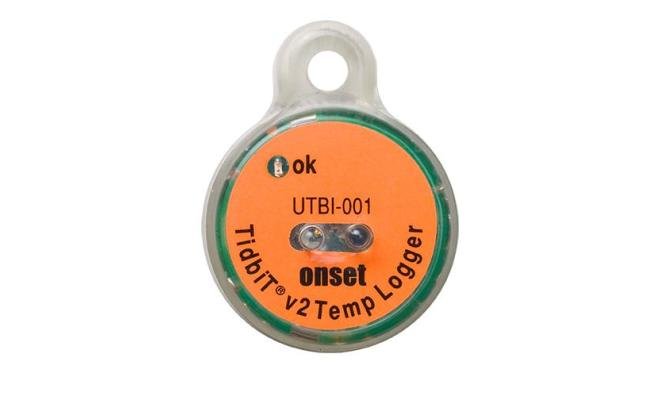

What’s in the box: TidbiT v2 (UTBI-001) Temperature Data Logger
