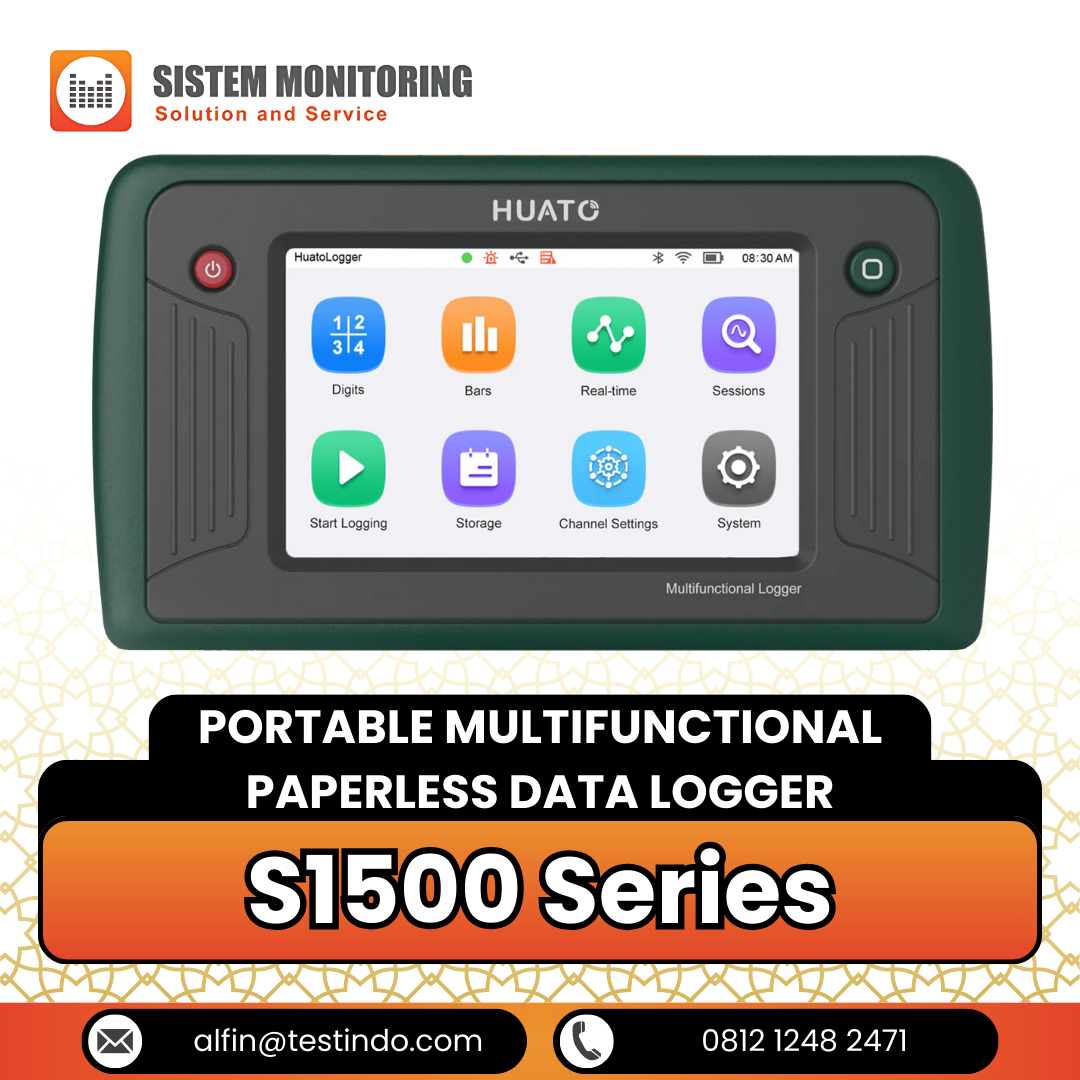

Description
Fitur
- Input multi-saluran, mendukung hingga 16 saluran input.
- Mendukung beberapa jenis input sinyal, mendukung beberapa input sinyal seperti tegangan DC, arus DC, termokopel, RTD, NTC, frekuensi, jumlah pulsa, dll.
- Mendukung berbagai jenis masukan termokopel, rentang deteksi suhu yang luas (-270-2320 ℃).
- Dengan antarmuka periferal seperti USB, kartu TF, RJ45, dll., dan melakukan pemantauan data waktu nyata di WEB melalui antarmuka RJ45.
- Ini memiliki fungsi akuisisi sinyal pemancar arus dan tegangan, yang nyaman untuk menghubungkan berbagai jenis pemancar sensor.
- Pengambilan sampel tingkat tinggi, akuisisi sinyal 16 saluran selesai dalam 1 detik.
- Kapasitas penyimpanan datanya besar, satu file rekaman dapat merekam hingga 100.000 rekaman, dan total kapasitas penyimpanan data minimal 8 juta rekaman.
- Dengan fungsi tampilan data, dapat menampilkan tampilan digital, tampilan grafik batang, tampilan informasi rinci saluran tunggal.
- Ini memiliki beberapa mode perekaman seperti perekaman langsung, perekaman waktu, dan penghentian waktu, membuat fungsi perekaman.
- Dengan fungsi analisis data, ia dapat menggambar kurva waktu nyata dan menanyakan kurva historis
Model List
|
Model List
|
|
|---|---|
|
Model
|
Function description
|
|
S1508U
|
8-Channel universal input
|
|
S1512U
|
12-Channel universal input
|
|
S1516U
|
16-Channel universal input
|
|
Product informations
|
|
|---|---|
|
Dimensions
|
189.3*103.5*39mm（With ProtectionWith protective sleeve）
|
|
Display
|
5 inch capacitive touch screen, resolution 800 * 480
|
|
Number of channels
|
8-channel/12-channel/16-channel universal input
|
|
Storage capacity
|
Single record capacity: 100000 records ; Total data recording capacity: 8 million records
|
|
Internal storage
|
32GB
|
|
External transfer
|
Support U disk (USB 2.0), SD card (32G)
|
|
Ethernet
|
Transmission rate: 10m / 100M bit / s , full duplex and half duplex
|
|
Battery capacity
|
5000mAh
|
|
Sampling frequency
|
1s at fast
|
|
Recording frequency
|
1s at fast
|
|
Data format
|
CSV fifile format
|
|
Working temperature
|
-10-50℃
|
|
Storage temperature
|
-20-60℃
|
|
Relative temperature
|
5% – 95% RH, no condensation
|
|
Shell material
|
PC / ABS material and TPE
|
|
Input signal
|
|||
|---|---|---|---|
|
Type
|
Measuring range（℃）
|
Resolution（℃）
|
Maximum allowable error(℃)
|
|
Two-wiresystem
|
-200-850℃
|
0.01℃
|
±1.0℃
|
|
Three-wiresystem
|
200-850℃
|
0.01℃
|
±0.5℃
|
|
Four-wiresystem
|
-200-850℃
|
0.01℃
|
±0.1℃
|
|
Thermocouple input (excluding cold junction error), accuracy does not include cold junction compensation error, cold junction compensation error: ±1.5℃
|
|||
|
K
|
-270-1370℃
|
0.01℃
|
±0.5℃
|
|
J
|
-200-760℃
|
0.01℃
|
±0.5℃
|
|
E
|
-270-980℃
|
0.01℃
|
±0.5℃
|
|
T
|
-270-400℃
|
0.01℃
|
±0.5℃
|
|
R
|
-50-1760℃
|
0.01℃
|
±2℃
|
|
S
|
-50-1760℃
|
0.01℃
|
±2℃
|
|
N
|
-270-1300℃
|
0.01℃
|
±0.5℃
|
|
B
|
50-1820℃
|
0.01℃
|
±2℃
|
|
C
|
0-2320℃
|
0.01℃
|
425℃以下±4.5℃，425-2320℃ 1.0%
|
|
Thermistor input
|
|||
|
NTC-10K
|
-25-150℃
|
0.01℃
|
±0.50%FS
|
|
NTC-2252
|
-25-150℃
|
0.01℃
|
±0.50%FS
|
|
DC current / voltage input
|
|||
|
NTC-2252
|
-25-150℃
|
0.01℃
|
±0.50%FS
|
|
DC current / voltage input
|
|||
|
Type
|
Resolution
|
Maximum allowable erro（%FS）
|
|
|
（1-5）V
|
0.001V
|
±0.1%
|
|
|
（0-10）V
|
0.001V
|
±0.1%
|
|
|
（0-5）V
|
0.001V
|
±0.1%
|
|
|
（0-100）mV
|
0.001mV
|
±0.1%
|
|
|
（4-20）mV
|
0.001mV
|
±0.1%
|
|
|
（0-20）mV
|
0.001mV
|
±0.1%
|
|
|
（0-10）mV
|
0.001mV
|
±0.1%
|
|
|
Frequency and Pulse input(Only channel 1 can be used)
|
|||
|
Type
|
Measuring range
|
Maximum allowable erro（%FS）
|
|
|
Frequency
|
0~99KHz
|
±2Hz
|
|
|
Pulse / count
|
0-4，000,000,000 Pulses
|
||
