Alat Sensor Suhu Udara/Air/Tanah yang Menjelaskan Dirinya Sendiri Self-Describing Air/Water/Soil Temperature Sensor SD-TEMP-06

Alat Sensor Suhu Udara/Air/Tanah yang Menjelaskan Dirinya Sendiri Self-Describing Air/Water/Soil Temperature Sensor SD-TEMP-06 Untuk digunakan dengan HOBO MX1104 dan MX1105 Multi-Channel Data Loggers, sensor suhu udara/air/tanah ini menawarkan pelepas regangan terpadu, sehingga probe diamankan ke logger. Dan dilengkapi teknologi Self-Describing untuk secara otomatis mengomunikasikan informasi konfigurasi ke logger, tanpa pemrograman atau pengaturan pengguna yang ekstensif.

Description

Features

Self-Describing technology for quick, easy setup

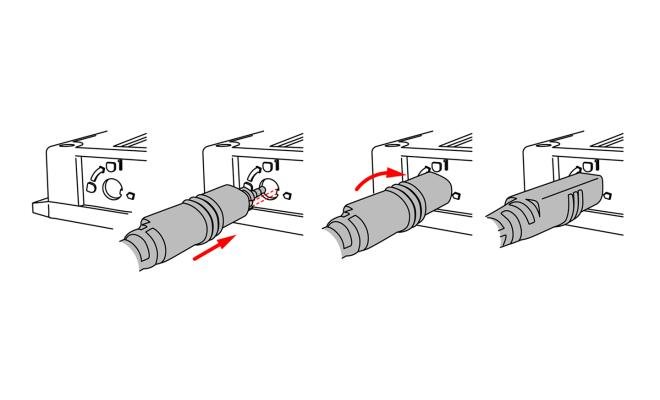

Locking jack to ensure sensor is connected and stays connected
Measurement range of -40° and 100°C (-40° to 212°F)
Accuracy of ±0.15°C from 0° to 50°C (±0.27°F from 32° to 122°F)
Available in lengths of 0.3 m (1 ft), 1.8 m (6 ft), 6.1 m, (20 ft) & 15.2 m (50 ft)

Specifications

Measurement Range: -40° to 50°C (-40° to 122°F) in water; -40° to 100°C (-40° to 212°F) in air

Accuracy: ±0.15°C from 0° to 50°C (±0.27°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum; see Plot A

Resolution:

0.002° at 25°C

0.003° at 77°F

Drift: <0.1°C (<0.2°F) per year

Response Time in Air: 2 minutes typical to 90% in air moving 1 m/s (2.2 mph)

Response Time in Stirred Water: 30 seconds typical to 90%

Operating Range: Sensor tip and cable immersion in fresh water up to 50°C (122°F) for 1 year

Probe Housing: Copper-plated sensor tip

Probe Dimensions:

5.1 x 33 mm

0.2 x 1.3 inches

Cable Length:

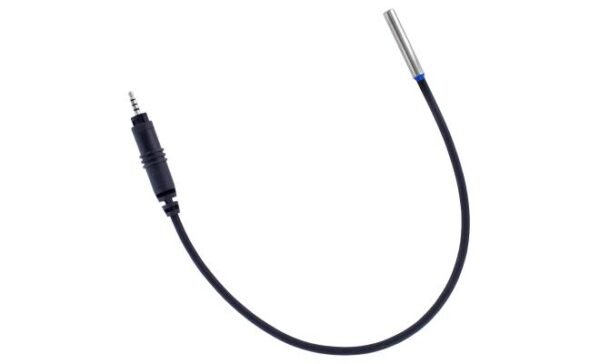

SD-TEMP-01: 0.3 m (1 ft)
SD-TEMP-06: 1.8 m (6 ft)

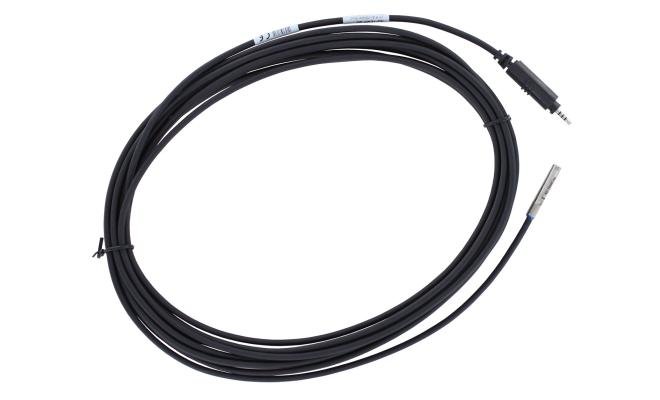

SD-TEMP-20: 5.1 m (20 ft)

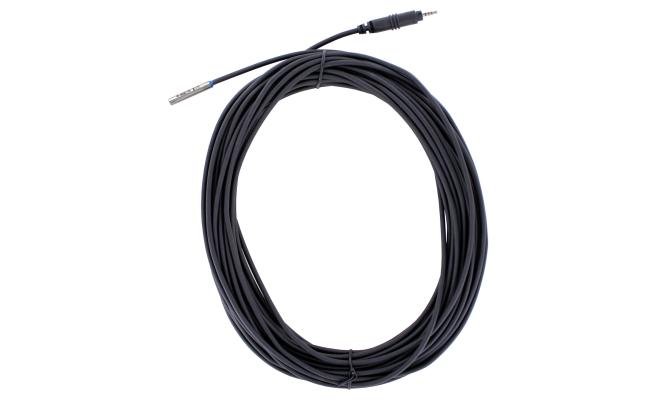

SD-TEMP-50: 15.2 m (50 ft)
