Description
Main Features
- Tampilan LCD Modern dengan Struktur Menu
-
-
Informasi uji lengkap: gaya uji, metode uji, panjang lekukan, nilai kekerasan, konversi skala, waktu tahan, jumlah pengukuran, tanggal & waktu
-
- Perhitungan & Konversi Otomatis
-
-
Menghitung nilai kekerasan Vickers (HV) atau Knoop (HK)
-
Konversi otomatis ke skala lain (HB, HR, HV)
-
- Sistem Optik & Pencahayaan Presisi
-
-
Mikroskop pengukuran digital 10X & lensa objektif 40X
-
Pencahayaan LED hemat energi & umur panjang
-
- Konektivitas & Data Management
-
-
Fungsi penyimpanan, pencarian, perhitungan rata-rata
-
Port RS232, kompatibel dengan kamera digital & software analisis
-
Mendukung ekspor laporan ke Word/Excel
-
- Desain Ergonomis & Stabilitas Tinggi
-
-
Sistem tiga titik positioning untuk akurasi pengulangan
-
Pegas dari material impor berkualitas tinggi, tahan deformasi
-
Additional Features
-
Tabel konversi kekerasan terlengkap
-
Indenter dan lensa diganti secara manual dengan presisi tinggi
-
Mendukung pemasangan kamera digital (Sony chip CCD) untuk dokumentasi & analisis
Technical Specifications

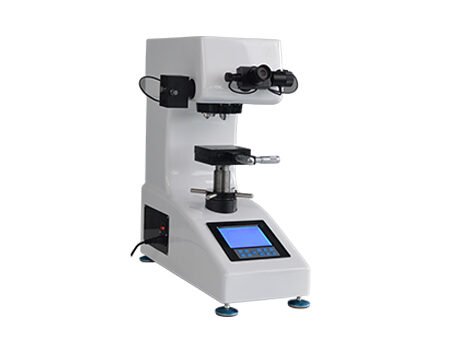

| Model | HVS-1000B |
| Test force | 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
| Minimum test unit | 0.025µm Electronic automatic measuring eyepiece |
| Conversion scale | HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
| Hardness test range | 5~3000HV |
| Test force application method | Automatic (loading, holding, unloading) |
| Test microscope magnification | 100X（Observed）400X(test) |
| Test force holding time | 1~60s |
| X-Y Test Table | Size:100*100mm Maximum movement:25*25mm |
| Data output | LCD display readout, built-in printer and RS-232 interface |
| Maximum height of specimen | 90mm |
| Distance from center of indenter to outer wall | 95mm |
| power supply | AC220V+5%,50-60Hz |
| Size | 405*290*480mm |
| Weight | 40Kg |
Appendix
| Name | Qty | Name | Qty |
| Weight shaft | 1 | Weight | 6 |
| Cross test table | 1 | Sheet holding table | 1 |
| Flat clamping table | 1 | Filament clamping table | 1 |
| Screwdriver | 2 | Adjusting screw | 4 |
| Small spirit level | 1 | 10X test eyepiece | 1 |
| Micro Vickers hardness block (high block, low block) | One of each | Spare fuse (2A) | 2 |
| power cable | 1 | Product certification | 1 |
| Instruction Manual | 1 |
Optional (additional charge)
Sistem Software Analisis Otomatis:
-
Kontrol Hardness Tester via PC
-
Pengukuran otomatis indentasi
-
Pembuatan kurva pengerasan
-
Statistik lengkap (Cp, Cpk, rata-rata, varian)
-
Laporan otomatis (Word/Excel)
-
Pengukuran Knoop & Fracture Toughness
Opsional Hardware Tambahan:
-
Kamera HD 3MP
-
Komputer industri 21,5” + printer warna HP
