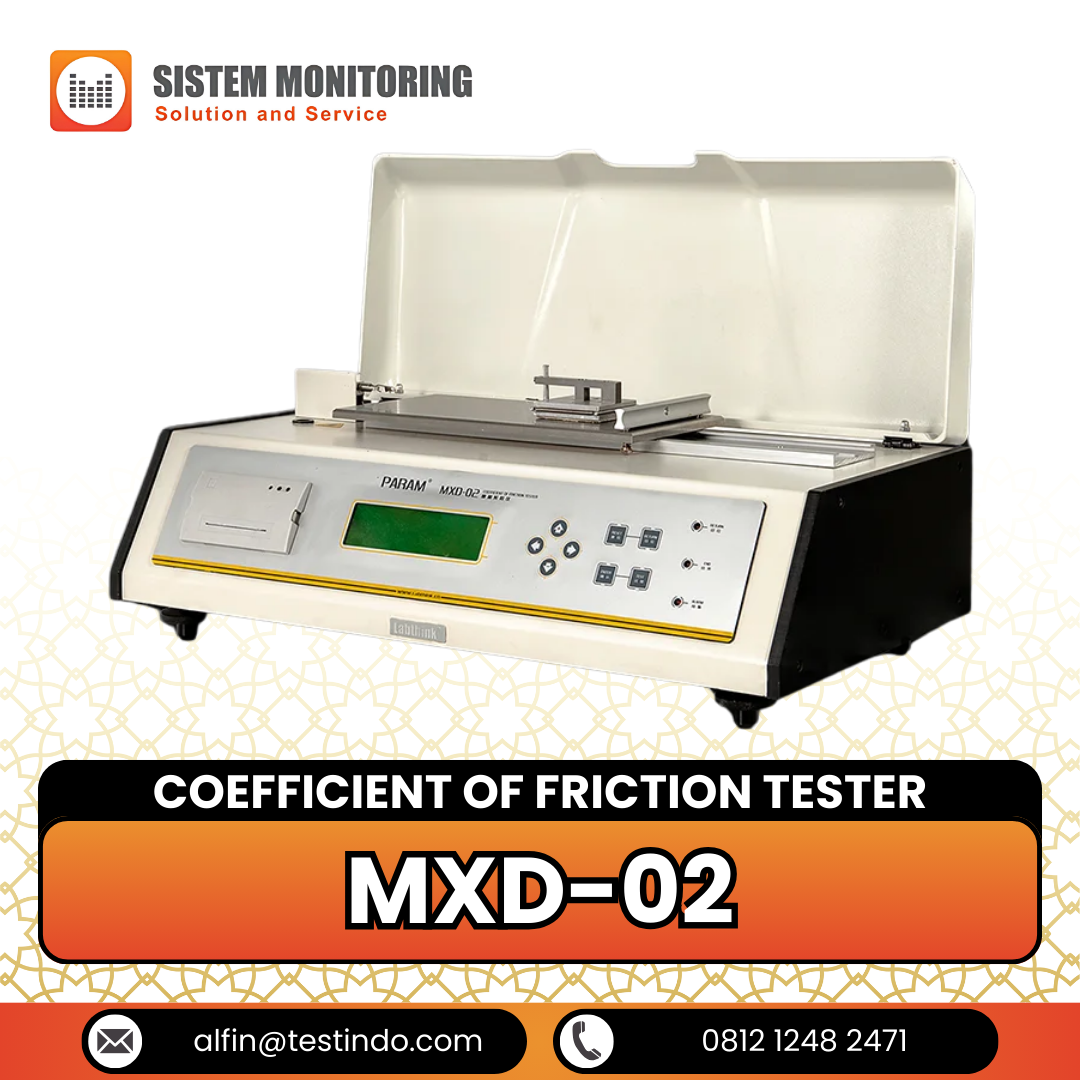

Alat Uji Koefisien Gesekan Coefficient of Friction Tester MXD-02

Description

Penguji Koefisien Gesekan MXD-02 dirancang untuk pengujian koefisien gesekan statis dan kinetis film plastik, lembaran, karet, kertas, tas anyaman PP, gaya kain, strip/sabuk komposit logam-plastik untuk kabel komunikasi, ban berjalan, kayu, pelapis, bantalan rem, wiper kaca depan, bahan sepatu, dan ban. Dengan pengujian kehalusan material, pengguna dapat mengontrol dan menyesuaikan indeks teknis kualitas material untuk memenuhi permintaan aplikasi. Selain itu, penguji ini dapat digunakan untuk mengukur kehalusan kosmetik, obat tetes mata, dan bahan kimia sehari-hari lainnya.



Features

• Static and kinetic coefficients of friction can be tested for each specimen
• This instrument conforms to multiple standards of ISO, ASTM and GB and the user could select testing methods as required
• Test speed could be preset and adjusted by the users as required
• Sled of specific weight could be customized
• The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system error
• Top quality parts and components made by world famous brands are used to ensure reliable overall product performance
• The instrument is controlled by micro-computer with LCD display, PVC operation panel and menu interface
• Professional operating software support statistical analysis of single specimen, group specimens, superposition analysis of test curves and historical data comparison functions
• Equipped with RS232 port and micro printer port which is convenient to the data transmission and PC connection
• Supports Lystem^TM Lab Data Sharing System for uniform and systematic data management

Standards

This instrument conforms to various national and international standards:
ISO 8295, ASTM D1894, TAPPI T816, GB 10006

Applications

Basic Applications
Plastic Films and Sheets Coefficient of static and dynamic friction tests of plastic films and sheets
Paper and Paperboard Coefficient of static and dynamic friction tests of paper and paperboard
Textiles, Non-woven Fabrics and Woven Bags Coefficient of static and dynamic friction tests of textiles, non-woven fabrics and woven bags
Rubber Coefficient of static and dynamic friction tests of rubber products
Aluminum Foils, Aluminum Foil Composite Films, and Metal Products Coefficient of static and dynamic friction tests of aluminum foils, aluminum foil composite films and other metal products
Printing Matters Coefficient of static and dynamic friction tests of printing matters
Extended Applications
Wood and Flooring Coefficient of static and dynamic friction tests of wood and flooring
Photographic Films Coefficient of static and dynamic friction tests of photographic films
Grains Coefficient of static and dynamic friction tests of grains against the metal materials
Hair Coefficient of static and dynamic friction tests of the hairs
Pipes Coefficient of static and dynamic friction tests of pipes
Ball Shaped Materials Coefficient of static and dynamic friction tests of the ball shaped material against even leveled materials
Medical Tubes Coefficient of static and dynamic friction tests of medical tubes and artificial skin
Lacquered Wires Coefficient of static and dynamic friction tests of the lacquered wire against even leveled materials

Technical Specifications

Specifications	MXD-02 Coefficient of Friction Tester
Capacity Range	0 ~ 5 N
Accuracy	0.5% FS
Stroke	70 mm, 150 mm
Mass of Sled	200 g (Standard)
	Sled of specific weight could be customized
Test Speed	100 mm/min, 150 mm/min
	Test speed could be adjusted
Environment Condition	Temperature: 23±2°C
	Humidity: 20%RH ~ 70%RH
Power Supply	220VAC 50Hz / 120VAC 60Hz
Instrument Dimension	630 mm (L) x 360 mm (W) x 230 mm (H)
Net Weight	33 kg

Configurations

Standard Configurations

Instrument, Micro Printer and Sled of 200g

Optional Parts

Professional Software, Communication Cable and Customized Sled of 500g
