Description
Features:
1. It can automatically adjust the parallelism of the pressure-bearing surface betweenthe test piece and the pressure plate, so that the test piece is evenly stressed;
2. There is a sealing device between the piston and the oil cylinder to prevent oil
leakage;
3. Equipped with a safety valve, which can overflow when overloaded and play a roleof
safety protection;
4. The test data is automatically processed and the test report is printed out.

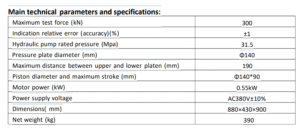

Main technical parameters and specifications:
Maximum test force (kN) 300
Indication relative error (accuracy)(%) ±1
Hydraulic pump rated pressure (Mpa) 31.5
Pressure plate diameter (mm) Φ140
Maximum distance between upper and lower platen (mm) 190
Piston diameter and maximum stroke (mm) Φ140*90
Motor power (kW) 0.55kWPower supply voltage AC380V±10%Dimensions( mm) 880×430×900
Net weight (kg) 390
