Description

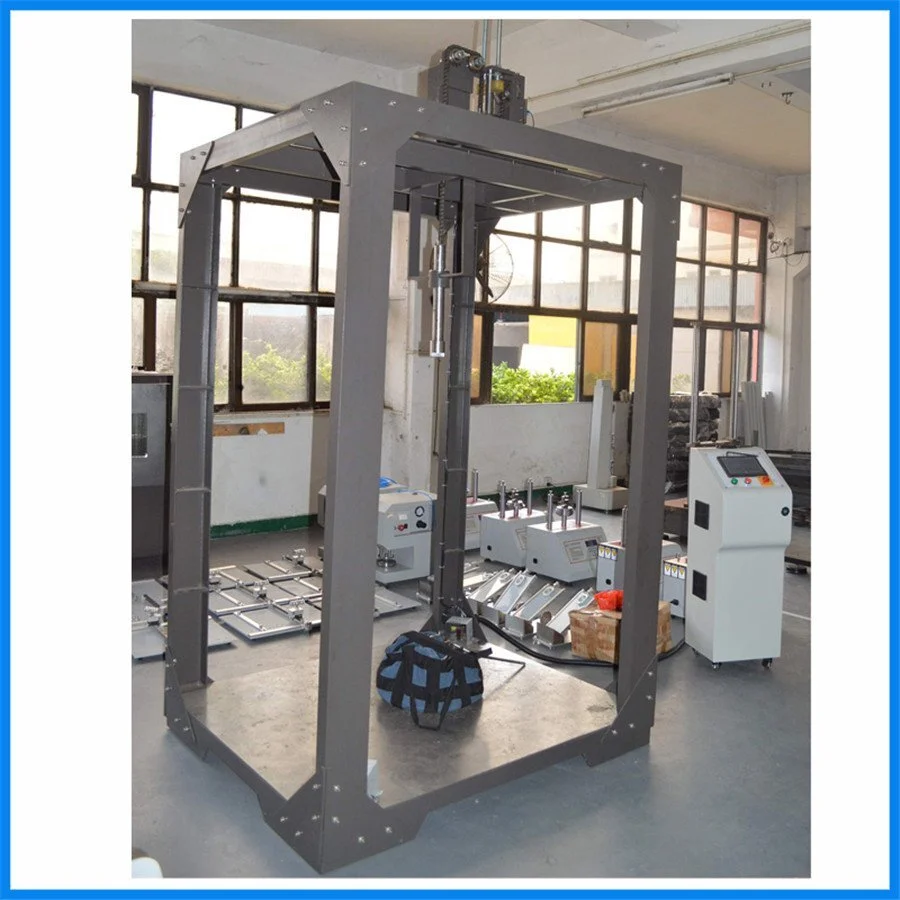

Mesin Uji Dampak Getaran Koper
1. Prinsip kerja:
Mesin Uji Dampak Getaran Getaran Koper metode pengujiannya adalah dengan memuat berat tertentu pada spesimen, menabraknya sebanyak 2500 kali dengan 30 kali / menit dan jarak 4 “.
2. Kriteria Desain
QB/T 2922-2007
Parameter Teknis
Mesin Uji Dampak Getaran Koper Layar Sentuh LED
| Controller | PLC controller, touch screen interface |
| Test frame height | 2500mm |
| Impact height | 6 inches |
| Max. load | 50Kg |
| Vibration mode | Spring mode 17.54N/mm (±5%) |
| Testing speed | 10-30 r/min (adjustable) |
| Times setting | 1-999,999, automatic shutdown |
| Driving mode | Pneumatic Cylinder |
| Machine dimension | 1400×1200×3250mm(L×W×H) |
| Machine weight | 600Kg |
| Power | 1∮, AC220V, 50Hz |
| Additional function | Auto stop if any fault |
| Air source | 1.5HP air pump (provided by buyer) |
