Description
Pengukur transmisi film jendela LS163A adalah instrumen untuk mengukur sifat optik material seragam dan transparan seperti film surya, kaca film, kaca insulasi panas, dan kaca depan mobil. Antarmuka pengukuran dapat dipilih untuk menampilkan penolakan dan transmitansi inframerah dan ultraviolet.
Application
LS163A window film transmission meter is mainly suitable for various solar film, glass manufacturers, car 4S shops, car beauty shops and other occasions. In addition to solar film and heat insulation film, it can also be used to measure various stick-film glass, automobile side glass and PC materials.
LS163A transmission meter tests film
LS163A transmission meter tests film glass
LS163A transmission meter tests PC material
LS163A transmission meter tests car side glass
Parameters
| Parameter | Value |
|---|---|
| UV Peak wavelength | 365nm |
| IR Peak wavelength | 1400nm |
| Visible light | 380-760nm, conform to the CIE photopic luminosity function |
| Accuracy | ±2% (Colorless and transparent material) |
| Resolution | 0.1% |
| Test Slot | 6mm *58mm (W*D) |
| Dimension | 146 mm ×73 mm ×24 mm (L*W*H) |
| Display | 128*128 Dot matrix LCD |
| Weight | 187g (Include Batteries) |
| Power supply | 4*AAA alkaline batteries |
Real-time automatic calibration function
The LS163A solar film transmission meter has real time dynamic calibration function , the meter will make self-calibration after powering on

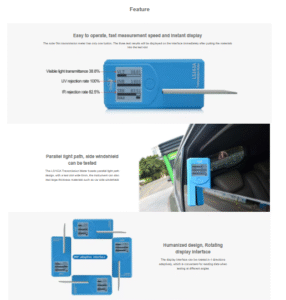

Three display interfaces available
We can set the display interface as UV and IR rejection rate, light transmission rate or light transmittance
Lock testing datas by pressing “Hold” button
The window film transmission meter has data lock function. Press the “Hold” button after testing, the data will remain on the interface after taking away the tested materials
