Description
Sederhanakan pengukuran

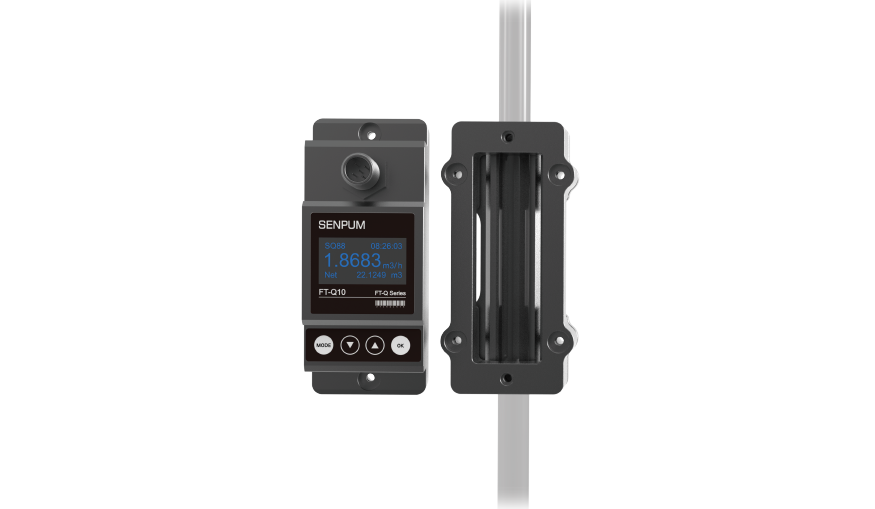

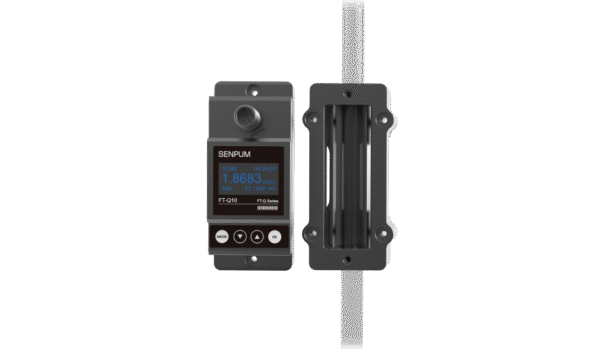

Pengukur aliran terpasang pada bagian luar tabung, sehingga tidak perlu lagi modifikasi perpipaan tambahan.
Mudah dipasang tanpa pelatihan khusus
Untuk memasang, jepit; gunakan sekrup untuk mengencangkan.
Instalasi tanpa menghentikan produksi
Instalasi tanpa menghentikan produksi.
Banyak digunakan, cocok untuk berbagai tabung dan berbagai media
Pipa logam: pipa baja tahan karat, pipa baja karbon, pipa tembaga, dll.
Pipa plastik: PVC/CPVC, PVDF, PPR, PPH, PFA/PU, HDPE, dll.
Products Lineup
| Appearance | Maximum flow rate (L/min) | Nominal diameter (DN) | Model |
 |
11.02 | DN6 | FT-Q6 |
| 19.59 | DN8 | FT-Q8 | |
| 30.62 | DN10 | FT-Q10 | |
| 52.99 | DN15 | FT-Q15 | |
| 94.2 | DN20 | FT-Q20 | |
| 147.19 | DN25 | FT-Q25 | |
| 241.15 | DN32 | FT-Q32 | |
| 376.8 | DN40 | FT-Q40 | |
| 588.75 | DN50 | FT-Q50 |
Technical Specifications
| Type | Clamp type | ||||||||
| Model | FT-Q6 | FT-Q8 | FT-Q10 | FT-Q15 | FT-Q20 | FT-Q25 | FT-Q32 | FT-Q40 | FT-Q50 |
| Nominal diameter (DN) | DN6 | DN8 | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Pipe OD (mm) | Φ9.53 | Φ12.7 | Φ15 | Φ20 | Φ25 | Φ32 | Φ40 | Φ50 | Φ63 |
| Pipe OD (NPS) | 1/8″ | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ |
| OD range (mm) | 9.5-11.5 | 12-13.5 | 14-16 | 20-23 | 25-30 | 32-35 | 38-45 | 48-54 | 58-64 |
| Flow rate range (L/min) | 0.34-11.02 | 0.6-19.59 | 0.94-30.62 | 1.06-52.99 | 1.88-94.2 | 2.94-147.19 | 4.82-241.15 | 7.54-376.8 | 11.78-588.75 |
| Accuracy | ±2.0 % | ||||||||
| Repeatability | 0.8% | ||||||||
| Measured pipe diameter | Φ12.7-Φ63 | ||||||||
| Memory function | Accumulation of daily, monthly, and yearly flow rates available | ||||||||
| Analog output | 4 to 20 mA, max load 600 Ω | ||||||||
| Communication interface | RS485, support Modbus communication protocol | ||||||||
| Power supply | 24 VDC | ||||||||
| Keypad | Four keys | ||||||||
| Display | OLED | ||||||||
| Unit | Supports metric units, Cubic Meters (m³), Liters (L), USA Gallons (GAL), optional per hour (hour), per minute (min), factory default units are m³/h. | ||||||||
| Accumulator | 6-Digit flow totalizer | ||||||||
| Suitable pipe material | Stainless steel, copper pipe, carbon steel, plastic pipe (PVC, PVDF, PPR, etc.), PFA, silicone | ||||||||
| Enclosure material | Aluminum | ||||||||
| Ambient temperature | 0 to 50 °C (32 to 122 °F) | ||||||||
| Media temperature | 0 to 50 °C (32 to 122 °F) | ||||||||
| Ambient humidity | 0 to 90 % RH (no condensation) | ||||||||
| Protection class | IP54 | ||||||||
| Cable length (m) | 2 | ||||||||
| Weight (kg) | 0.89 | 0.81 | 0.8 | 0.89 | 0.97 | 1.26 | |||
*1 Jika fungsi alarm diperlukan, jenis output switching NPN dapat disesuaikan, silakan hubungi bagian penjualan SENPUM. Misalnya, model output switching NPN FT-Q8 dengan fungsi alarm adalah: FT-Q8N.
