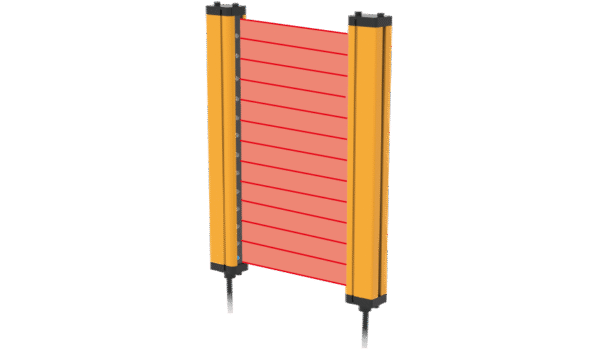

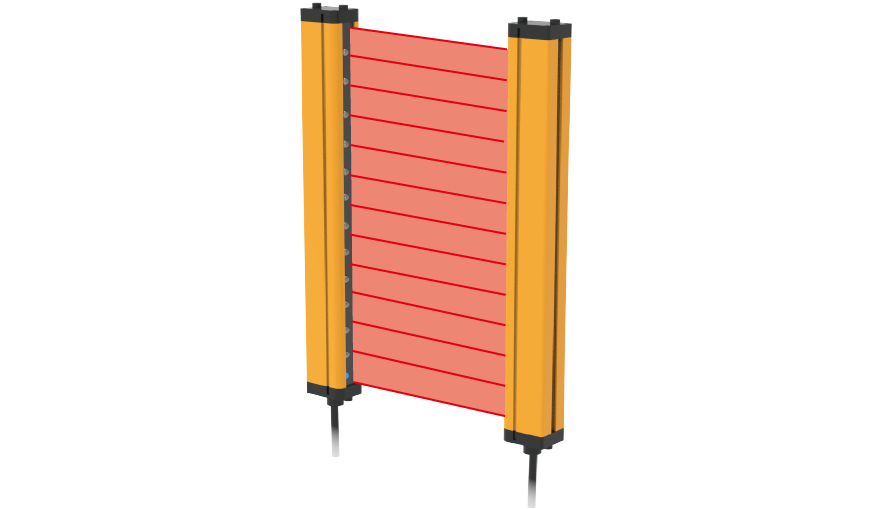

Description
Fitur deteksi anomali tingkat lanjut secara signifikan meningkatkan efisiensi produksi
Mampu mendeteksi cacat pada lembaran baja dengan andal, termasuk lubang sekecil Φ1 mm.
Jarak sumbu optik ultra-sempit (dapat disesuaikan)
Layanan yang disesuaikan dengan jarak sumbu optik yang sangat sempit untuk memeriksa objek yang lebih kecil.
Mendukung beberapa output antarmuka
Mendukung berbagai keluaran antarmuka, penggantian impor, sederhana dan nyaman.
Products Lineup
| Model | Overall length | Optical axis number | Detection height |
| SA-MX-30-08-* | 260 mm | 30 | 232 mm |
| SA-MX-45-08-* | 380 mm | 45 | 352 mm |
| SA-MX-60-08-* | 500 mm | 60 | 472 mm |
| SA-MX-75-08-* | 620 mm | 75 | 592 mm |
| SA-MX-90-08-* | 740 mm | 90 | 712 mm |
| SA-MX-105-08-* | 860 mm | 105 | 832 mm |
| SA-MX-120-08-* | 980 mm | 120 | 952 mm |
| SA-MX-135-08-* | 1100 mm | 135 | 1072 mm |
*1. Produksi khusus tersedia untuk kebutuhan khusus.
Technical Specifications
| Model | SA-M |
| Optical axis number | 30 to 360 |
| Optical axis spacing | Customized |
| Cross-section dimensions | 52 mm x 37 mm |
| Detecting distance | 0.1 to 8 m |
| Detection height | 232 to 2872 mm |
| Response time | Maximum 14 ms |
| Output type | Two outputs |
| Power voltage | 24 VDC ±10 %, Ripple Voltage (P-P): 10 % max. |
| Power consumption | 3 to 8 W |
| Insulation resistance | More than 100 MΩ |
| Protection circuit | Reverse connection protection, output short-circuit protection |
| Interference immunity | 10,000 lux |
| Ambient temperature | -15 to +65 °C (no freezing) |
| Relative humidity | 35 to 85 % RH (no condensation) |
| Protection class | IP65/IP67 optional |
| Material | Enclosure: Aluminum alloy |
| Mounting method | Bracket mounting |
| Other functions | Optional accessories |
| Cable | 3 m lead-out type |
