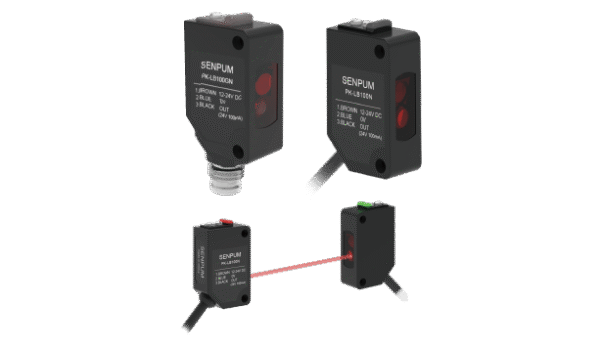

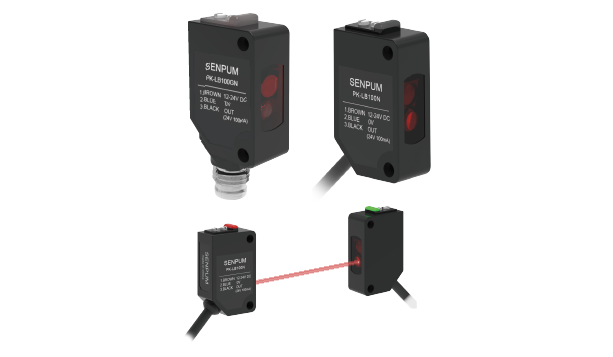

Description
Jarak deteksi maksimum hingga 15m untuk tipe thrubeam
LED skala abu-abu tinggi untuk deteksi jarak jauh dan penyelarasan serta komisioning yang mudah.
Desain sistem optik khusus, deteksi mudah dan stabil
Mendeteksi objek dalam rentang tertentu.
Reflektif, jarak deteksi maksimum 1m
Tipe serbaguna dengan kinerja unggul untuk berbagai aplikasi.
Products Lineup
| Type | Appearance | Detection distance | Wiring method | Model | ||||||||
| NPN | PNP | |||||||||||
| Reflective |  |
 |
2m Cable | PK-LB100N | PK-LB100P | |||||||
 |
M8 Connector | PK-LB100CN | PK-LB100CP | |||||||||
 |
 |
2m Cable | PK-LC030N | PK-LC030P | ||||||||
 |
M8 Connector | PK-LC030CN | PK-LC030CP | |||||||||
| Retro-reflective |  |
 |
2m Cable | PK-LR300N | PK-LR300P | |||||||
 |
M8 Connector | PK-LR300CN | PK-LR300CP | |||||||||
| Thrubeam |  |
 |
2m Cable | PK-LD10MN | PK-LD10MP | |||||||
 |
M8 Connector | PK-LD10MCN | PK-LD10MCP | |||||||||
 |
 |
2m Cable | PK-LD15MN | PK-LD15MP | ||||||||
 |
M8 Connector | PK-LD15MCN | PK-LD15MCP | |||||||||
Technical Specifications
NPN output
| Model | PK-LB100N | PK-LB100CN | PK-LC030N | PK-LC030CN | PK-LR300N | PK-LR300CN | PK-LD10MN | PK-LD10MCN | PK-LD15MN | PK-LD15MCN | ||||
| Type | Reflective long distance type | Reflective long connector type | Reflective BGS type | Reflective BGS connector type | Retro-reflective type | Retro-reflective connector type | Thrubeam type | Thrubeam connector type | Thrubeam type | Thrubeam connector type | ||||
| Detection distance | 1m | 30-300mm | 3m | 10m | 15m | |||||||||
| Spot dimension | About Φ75 at 1m | About Φ8 at 90mm | _ | _ | About 600mm at 15m | |||||||||
| Detected object | Opaque objects over Φ15mm | |||||||||||||
| Light source | RED LED660nm | RED LED620nm | ||||||||||||
| Power voltage | DC12~24V±10% ripple（p-p）10% or less(10-30V) | |||||||||||||
| Control output | NPN or PNP open collector: 100mA max.(30V) | |||||||||||||
| Consumption current | <20mA | <30mA | Transmitter under 15mA：<15mA Receiver under 15mA：<15mA |
|||||||||||
| Response time | 1ms | |||||||||||||
| Sensitivity adjustment | Screwdriver adjustment setting; single-turn potentiometer | Screwdriver adjustment setting；5-Turn potentiometer | Screwdriver adjustment setting; single-turn potentiometer | |||||||||||
| Indicators (LED) | Action time: orange LED; power supply, stable indicator; green LED | |||||||||||||
| Protection circuit | Short circuit protection, protection against reverse power connection, output reverse polarity protection | |||||||||||||
| Protection level | IEC IP67 | |||||||||||||
| Ambient light | Incandescent lamp: max.3000lux; sunlight: max.10000lux | |||||||||||||
| Ambient temperature | Operating: -25℃~+55℃（ no freezing） Storing: -40℃~+70℃（ no freezing） |
|||||||||||||
| Relative humidity | 35 to +85%, no condensation | |||||||||||||
| Vibration resistance | Durability: 10-55Hz compound amplitude 1.5mm X.Y.Z 2H in all directions. | |||||||||||||
| Shock resistance | 500 m/s² 3 times for each of X,Y,Z axis | |||||||||||||
| Connection method | Standard cable length 2m | Connector M8-4Pin | Standard cable length 2m | Connector M8-4Pin | Standard cable length 2m | Connector M8-4Pin | Standard cable length 2m | Connector M8-4Pin | Standard cable length 2m | Connector M8-4Pin | ||||
| Material | Case: PBT; lens: optical PMMA | |||||||||||||
PNP output
| Model | PK-LB100P | PK-LB100CP | PK-LC030P | PK-LC030CP | PK-LR300P | PK-LR300CP | PK-LD10MP | PK-LD10MCP | PK-LD15MP | PK-LD15MCP | ||||
| Type | Reflective long distance type | Reflective long connector type | Reflective BGS type | Reflective BGS connector type | Retro-reflective type | Retro-reflective connector type | Thrubeam type | Thrubeam connector type | Thrubeam type | Thrubeam connector type | ||||
| Detection distance | 1m | 30-300mm | 3m | 10m | 15m | |||||||||
| Spot dimension | About Φ75 at 1m | About Φ8 at 90mm | _ | _ | About 600mm at 15m | |||||||||
| Detected object | Opaque objects over Φ15mm | |||||||||||||
| Light source | RED LED660nm | RED LED620nm | ||||||||||||
| Power voltage | DC12~24V±10% ripple（p-p）10% or less(10-30V) | |||||||||||||
| Control output | NPN or PNP open collector: 100mA max.(30V) | |||||||||||||
| Consumption current | <20mA | <30mA | Transmitter under 15mA：<15mA Receiver under 15mA：<15mA |
|||||||||||
| Response time | 1ms | |||||||||||||
| Sensitivity adjustment | Screwdriver adjustment setting; single-turn potentiometer | Screwdriver adjustment setting； 5-Turn potentiometer |
Screwdriver adjustment setting; single-turn potentiometer | |||||||||||
| Indicators (LED) | Action time: orange LED; power supply, stable indicator; green LED | |||||||||||||
| Protection circuit | Short circuit protection, protection against reverse power connection, output reverse polarity protection | |||||||||||||
| Protection level | IEC IP67 | |||||||||||||
| Ambient light | Incandescent lamp: max.3000lux; sunlight: max.10000lux | |||||||||||||
| Ambient temperature | Operating: -25℃~+55℃（ no freezing） Storing: -40℃~+70℃（ no freezing） |
|||||||||||||
| Relative humidity | 35 to +85%, no condensation | |||||||||||||
| Vibration resistance | Durability: 10-55Hz compound amplitude 1.5mm X.Y.Z 2H in all directions. | |||||||||||||
| Shock resistance | 500 m/s² 3 times for each of X,Y,Z axis | |||||||||||||
| Connection method | Standard cable length 2m | Connector M8-4Pin | Standard cable length 2m | Connector M8-4Pin | Standard cable length 2m | Connector M8-4Pin | Standard cable length 2m | Connector M8-4Pin | Standard cable length 2m | Connector M8-4Pin | ||||
| Material | Case: PBT; lens: optical PMMA | |||||||||||||
