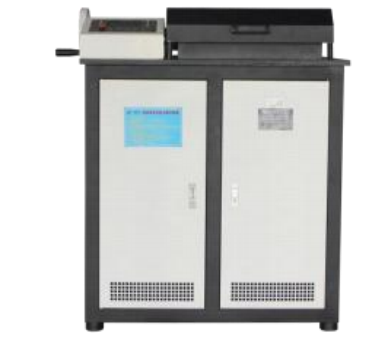

Description
Features:
1. The working disc can be set for forward bending and reverse bending.
2. Operation panel dual display device.
3. There are safety devices such as protective covers on the host.
4. Manual forward and reverse bending is possible.
5. Once an abnormal state occurs, it can be cleared and stopped
Main technical parameters and specifications:
1. Steel Bending Diameter (mm): Φ6~Φ40
2. Reinforcement Positive Bending Angle(°): 0~180 (arbitrary setting)
3. Bar Reverse Bending Angle(°): 0~20 (arbitrary setting)
4. Working Disc Rotation Speed (r/min): <3.7
5. Roll Center Distance (mm): 165
6. Positive bending core:4×Φ6 、4×Φ8、4×Φ10(5×Φ8)、4×Φ12、4×Φ14、4×Φ16、4×Φ18、4×Φ20(5×Φ16)、4×Φ22、4×Φ25、5×Φ28、5×Φ32、5×Φ36、5×Φ40mm7. Reverse bending core:5×Φ6、5×Φ10、5×Φ12、5×Φ14、5×Φ18、5×Φ22、5×Φ25、6×Φ28、6×Φ32mm
7. Power Supply: AC380V±10% ,1.5kW
8. Dimensions (mm): 1050×740×1170
9. Weight (kg): 750
