Description
Features
- Integrated barometric pressure sensor
- Plug-and-play remote water level and flow monitoring
Specifications
Barometric Pressure
Operation Range:
-
66 to 107 kPa9.57 to 15.52 psia
Temperature Calibrated Range: -20 to 50°C (-4 to 122°C)
Accuracy: ±0.2 kPa (±0.029 psi) over full temperature range at fixed pressure; maximum error ±0.5% FS
Water Level Accuracy:
-
Typical error: ±0.075% FS, 0.3 cm (0.01 ft) waterMaximum error: ±0.15% FS, 0.6 cm (0.02 ft) water
Resolution: <0.01 kPa (0.0015 psi)
Response Time: <1 second at a stable temperature
Stability (Drift): <0.01 kPa (0.0015 psi) per year
-
Water level system accuracy is the sum of the barometric accuracy (above) and the water level sensor accuracy (below).
Pressure (Absolute) and Water Level Measurements MX2001-01-S and MX2001-01-Ti-S
Operation Range:
-
0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range: 69 to 207 kPa (10 to 30 psia), 0 to 40C (32 to 104F)
Burst Pressure; 310 kPa (45 psia) or 18 m (60 ft) depth
Water Level Accuracy;
-
Typical error: 0.05% FS, 0.5 cm (0.015 ft) waterMaximum error: 0.1% FS, 1.0 cm (0.03 ft) water
Raw Pressure Accuracy:0.3% FS, 0.62 kPa (0.09 psi) maximum error
Resolution: <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water
Pressure Response Time (90%): <1 second at a stable temperature
Pressure (Absolute) and Water Level Measurements MX2001-02-S
Operation Range:
-
0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at3,000 m (10,000 ft) of altitude
Factory Calibrated Range: 69 to 400 kPa (10 to 58 psia), 0 to 40C (32 to 104F)
Burst Pressure: 500 kPa (72.5 psia) or 40.8 m (134 ft) depth
Water Level Accuracy:
-
Typical error: 0.05% FS, 1.5 cm (0.05 ft) waterMaximum error: 0.1% FS, 3.0 cm (0.1 ft) water
Raw Pressure Accuracy: 0.3% FS, 1.20 kPa (0.17 psi) maximum error
Resolution: <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water
Pressure Response Time (90%): <1 second at a stable temperature
Pressure (Absolute) and Water Level Measurements MX2001-03-S
Operation Range:
-
0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range: 69 to 850 kPa (10 to 123.3 psia), 0 to 40C (32 to 104F)
Burst Pressure: 1,200 kPa (174 psia) or 112 m (368 ft) depth
Water Level Accuracy:
-
Typical error: 0.05% FS, 3.8 cm (0.125 ft) waterMaximum error: 0.1% FS, 7.6 cm (0.25 ft) water
Raw Pressure Accuracy: 0.3% FS, 2.55 kPa (0.37 psi) maximum error
Resolution: <0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) water
Pressure Response Time (90%): <1 second at a stable temperature
Pressure (Absolute) and Water Level Measurements MX2001-04-S and MX2001-04-Ti-S
Operation Range:
-
0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range: 69 to 145 kPa (10 to 21 psia), 0 to 40C (32 to 104F)
Burst Pressure: 310 kPa (45 psia) or 18 m (60 ft) depth
Water Level Accuracy: Typical error: 0.075% FS, 0.3 cm (0.01 ft) water
-
Maximum error: 0.15% FS, 0.6 cm (0.02 ft) water
Raw Pressure Accuracy: 0.3% FS, 0.43 kPa (0.063 psi) maximum error
Resolution: <0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water
Pressure Response Time (90%): <1 second at a stable temperature
Water Level Sensor and Cable
Dimensions:
-
Sensor (MX2001-0x-S and MX2001-0x-Ti-S): 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) lengthCable (CABLE-RWL-xxx): 0.47 cm ±0.03 (0.185 inches ±0.01) diameter, 0.2 to 400 m (0.65 to 1,312 ft) lengthNote: The length of the water level logger cable can vary -0% to +3% +10 cm (3.9 inches) from the length ordered.
weight :
-
Stainless sensor (MX2001-0x-S): Approximately 106 g (3.74 oz) in air; approximately 53.9 g (1.9 oz) in fresh waterTitanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh waterCable (CABLE-RWL-XXX): 39 g (1.38 oz) per 1 meter (3.28 ft)
Materials:
-
Stainless sensor (MX2001-0x-S): Acetal housing, Viton and Buna-N O-rings, ceramic sensor in stainless steel end capTitanium sensor (MX2001-0x-Ti-S): Acetal housing, Viton and Buna-N O-rings, ceramic sensor in Titanium end capCable (CABLE-RWL-XXX): Polycarbonate end cap, PVC end cap, polycarbonate collar nut, Viton O-rings, polyurethane jacket
Notices
What’s in the box

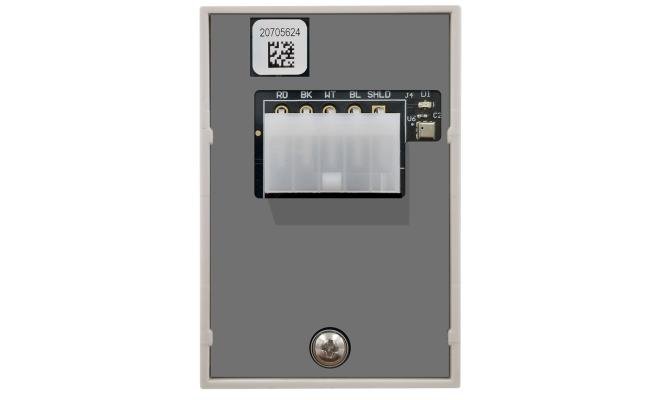

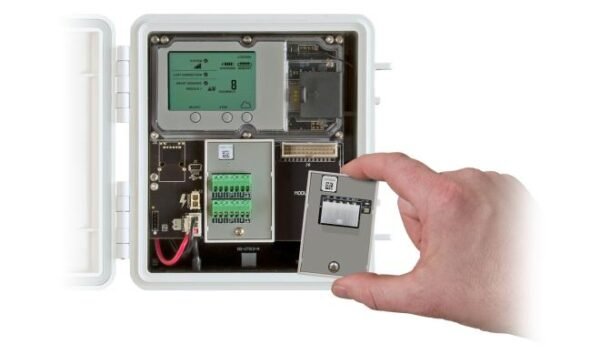

- RXMOD-W1
- One rubber cable channel
- Rubber plugs
- Grease packet
