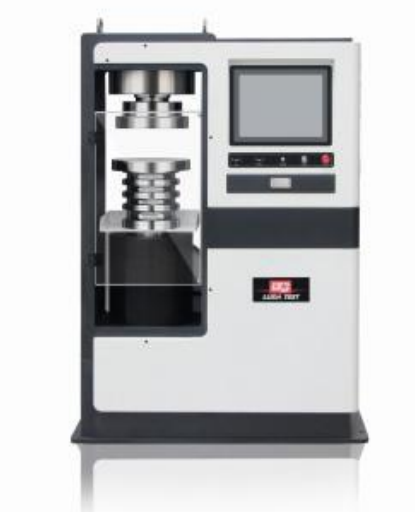

Description
Features:
1. The frame adopts the whole machine casting frame structure, which will never
deform
2. Imported servo oil source
3. High-precision digital micro valve
4. Imported servo motor oil source, the oil temperature is not too high
5. The sensor uses a high-precision load sensor to ensure data accuracy. Thecontrol
valve has a force closed-loop control function, which can realize equal loadrateloading or equal stress rate loading, with high control precision and good reliability
Main technical parameters and specifications:
Model YAW-2000S YAW-3000S
Maximum test force 2000KN 3000KNMeasurement accuracy range 5%- 100%
Indication accuracy ≤±0.5%
Loading rate 0.3Mpa-1.0MPa
Loading rate accuracy ±5%
Distance between upper and lower platen 330mm
Upper and lower bearing plate diameter 280*Φ320mm
Piston maximum stroke 120mm
Piston diameter φ250mm φ310mmOil maximum pressure 40Mpa
Dimensions 1100*510* 1510mm 1250×550 x1510mmNet weight 1200 kg 2000 kg
