Pemeriksaan jaminan kualitas menjadi lebih mudah dengan perangkat pemantauan suhu yang mudah digunakan untuk fasilitas industri.
Bahkan dengan sistem HVAC yang terkendali, suhu gudang dapat bervariasi hingga 50°F, menimbulkan risiko signifikan terhadap integritas produk yang disimpan.
Dalam lingkungan industri, termasuk manajemen HVAC, produksi kimia, dan manufaktur, menjaga kontrol suhu yang presisi sangatlah penting. Fluktuasi suhu di lingkungan ini dapat memengaruhi kinerja peralatan, keselamatan, dan kualitas produk. Dalam proses kimia dan manufaktur, penyimpangan suhu yang kecil dapat mengakibatkan kerugian finansial yang signifikan dan masalah keselamatan, sementara sistem HVAC memerlukan pemantauan yang konsisten untuk menjaga efisiensi dan mencegah kegagalan sistem.
Perekam suhu LogTag memberikan solusi praktis untuk tantangan suhu industri ini. Perekam ini menawarkan pemantauan suhu yang akurat dan andal, memberi Anda alat yang diperlukan untuk memastikan sistem HVAC beroperasi secara efisien, bahan kimia disimpan dalam kondisi optimal, dan proses manufaktur konsisten. Dengan fitur-fitur seperti integrasi yang mudah, peringatan waktu nyata, dan pelaporan data yang terperinci, perangkat LogTag memungkinkan industri untuk mengelola variasi suhu secara efektif, meningkatkan efisiensi operasional, konsistensi produk, dan keamanan. Memanfaatkan LogTag dalam industri HVAC, kimia, dan manufaktur berarti berinvestasi dalam pengaturan suhu yang presisi, meningkatkan efektivitas operasional, dan mempertahankan standar industri.
Lihat Produk
Lihat Produk
Lihat Produk
Alat Perekam Data (Data Logger) Suhu dan Kelembapan USB Multi-Trip LogTag ® UHADO-16
Link Produk: UHADO-16
Deskripsi
LogTag ® UHADO-16 Humidity and Temperature Logger mengukur dan menyimpan hingga 16.000 set pembacaan suhu dan kelembapan beresolusi tinggi pada rentang pengukuran 0 hingga 100 %RH dan -30 °C hingga +70 °C (-22 °F hingga +158 °F).
Layar menampilkan pembacaan Suhu dan Kelembaban saat ini, status Alarm dan status Perekaman.
UHADO-16 dilengkapi dengan tiga pin kontak sehingga dapat digunakan dengan LogTag ® LTI-USB, LTI-HID dan LTI-WiFi Interface Cradles.
Saat UHADO-16 dihubungkan ke komputer menggunakan colokan USB terintegrasi, laporan PDF terperinci mengenai data suhu dan kelembapan yang terekam dapat dibuat secara otomatis tanpa memerlukan aksesori tambahan dan perangkat lunak khusus.
Untuk analisis data yang lebih terperinci, UHADO-16 juga membuat berkas data terenkripsi yang kompatibel dengan perangkat lunak operasi LogTag ® Analyzer dan LogTag ® Online yang tersedia.
Speksifikasi
| Product Model | UHADO-16 |
| Sensor Measurement Range | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature Range | -30 °C to +70 °C (-22 °F to +158 °F) |
| Storage Temperature Range | +10 °C to +50 °C (+50 °F to +122 °F)* |
| Humidity Measurement Range | 0 %RH to 100 %RH (non-condensing), with limitations |
| Humidity Operating Range | 0 %RH to 100 %RH (non-condensing), with limitations |
| Humidity Storage Range | 20 %RH to 60% RH* |
| Rated Temperature Reading Accuracy | Better than ±0.45 °C (±0.8 °F) for +0 °C to +50 °C (+32 °F to +122 °F), typically ±0.3 °C (0.6 °F). Better than ±0.8 °C (±1.4 °F) for +50 °C to +70 °C (+122 °F to +158 °F), typically ±0.5 °C (0.9 °F). Better than ±0.95 °C (±1.7 °F) for -30 °C to +0 °C (-22 °F to +32 °F), typically ±0.6 °C (1.1 °F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Rated Humidity Reading Accuracy | Better than ±3 %RH for 20 %RH to 80 %RH, typically ±2 %RH. Better than ±5 %RH for 0 %RH to 20 %RH, typically ±4 %RH. Better than ±5 %RH for 80 %RH to 100 %RH, typically ±4 %RH. Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Humidity Resolution | Better than 0.1 %RH |
| Temperature Resolution | Better than 0.1 °C or 0.1 °F |
| Recording Capacity | 16,128 pairs of humidity and temperature readings. 112 days @ 10min logging, 168 days @ 15min logging. Statistics memory for displaying maximum and minimum Temperature and RH values on the LCD. Day summary statistics memory (for display on LCD): up to 30 days of Max/Min/duration and alarm trigger statistics. |
| Sampling Interval | Configurable from 30 seconds to several hours |
| Logging Start Options | Push button start or specific date and time |
| Recording Indication | State indicator “REC” |
| Alarms | 4 temperature and 2 humidity alarms |
| Download Time | Typically less than 10 seconds for full memory, depending on computer or readout device used |
| Environmental | IP61 (when hung or mounted vertically) |
| Power Source | CR2032 3V LiMnO2 Battery (Replaceable) |
| Battery Life | 1 year storage, 1 year of normal use (based on 15 minute logging, download data monthly) |
| Real Time Clock | Built-in real time clock. Typical accuracy ±25ppm @ 25 °C (equivalent to 2.5 seconds/day). |
| Connection Interface | Interface Cradle or USB 2.0 / Micro USB plug (cable not included) |
| Software | LogTag® Analyzer and LogTag® Online |
| Multi-language Support | Multi-language support for English, Spanish, French, Russian and German |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap |
| Weight | 41g |
| Case Material | Polycarbonate |
| Optimal Storage Condition | For optimal Humidity logger storage, store units in original packaging in an air conditioned area. Storage temperature shall be in the range of 10 °C to 50 °C and humidity at 20 %RH to 60 %RH. Ensure good ventilation (fresh air supply) in storage area to avoid high concentrations of volatile chemicals. Do not store units in the same room as solvents or any other strong smelling products. |

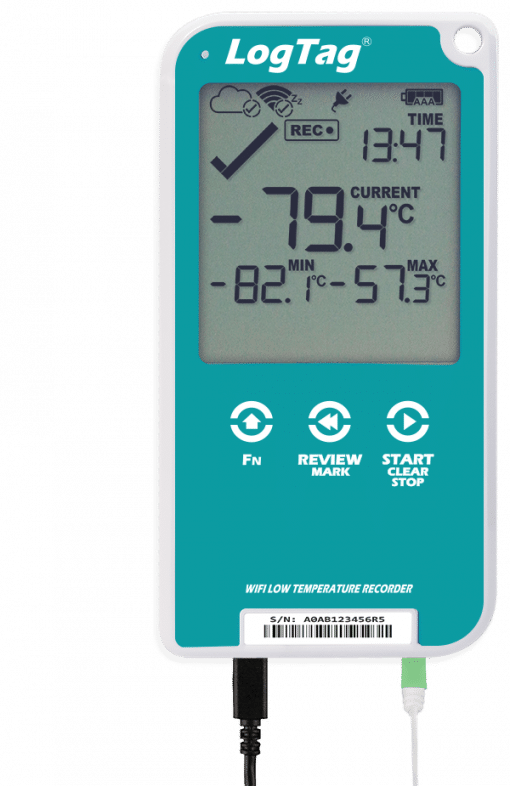

Alat Perekam Data (Data Logger) LCD Saluran Tunggal WiFi Suhu Rendah LogTag® UTREL30-WIFI (SC)
Link Produk: UTREL30-WIFI (SC)
Deskripsi
Pencatat data suhu LogTag® UTREL30-WiFi secara otomatis mengunggah data suhu waktu nyata ke akun cloud LogTag® Online Anda melalui jaringan nirkabel yang ada.
Alat ini dilengkapi layar besar yang mudah dibaca, disertai banyak atribut yang dikenal dari keluarga pencatat data LogTag®.
Ini termasuk memori nonvolatil untuk hingga 16.129 pembacaan suhu dan memori statistik, yang menyimpan pembacaan maksimum dan minimum serta durasi alarm untuk masing-masing 30 hari terakhir.
(Pasir silika direkomendasikan untuk suhu di bawah -40ºC untuk Perakitan Penyangga)
Botol penyangga dan Pasir Silika tidak termasuk.
Probe eksternal ST10M-15 digunakan dengan botol Buffer.
Speksifikasi
| Product Model | UTREL30-WiFi. |
| External Sensor Measurement Range | -90°C to +40°C (-130°F to +210°F). |
| Storage Temperature Range | 0°C to +40°C (32°F to +104°F). |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F). |
| Rated Temperature Reading Resolution | 0.1°C (0.2°F) for measurements -80°C to 10°C (-112°F to 50°F). 0.2°C (0.4°F) for measurements 10°C to 20°C (50°F to 68°F) and -90°C to -80°C (-130°F to -112°F). 0.3°C (0.5°F) for measurements 20°C to 30°C (68°F to 86°F). 0.5°C (0.9°F) for measurements 30°C to 40°C (86°F to 104°F). LogTag Analyzer currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Rated Temperature Reading Accuracy | Better than ±0.5°C for -20°C to +10°C (-4°F to 50°F) Better than ±0.7°C for -50°C to -20°C (-58°F to -4°F) and +10°C to +30°C (50°F to 86°F) Better than ±1°C for -80°C to -50°C (-112°F to -58°F ) and +30°C to +40°C (86°F to 104°F) Better than ±1.8°C for -90°C to -80°C (-130°F to -112°F) |
| Recording Capacity | 16,129 temperature readings. 67 days at 6 minute logging. Day summary statistics memory (for display on LCD): up for 30 days of Max/Min/duration and alarm trigger statistics. |
| Sensor Reaction Time | Typically less than 2 minutes(T90) in moving air (1m/s) for ST10S type. |
| Sampling Interval | Configurable from 30 seconds to 18 hours. |
| Logging Start Options | Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time. |
| Download Time | Typically with full memory (16,129 readings) in less than 10 seconds. |
| Environmental | IP61 (when vertically mounted or hung). |
| Calibration | Factory calibrated using NIST equivalent reference equipment. Calibration certificate available on request. |
| Power Source | 5V via micro USB socket or, 2 x 1.5V AAA alkaline batteries, CR2032 3V LiMnO2 (backup logging function only) |
| Battery Life | 1 year storage, followed by 12 months backup supply from the AAA batteries when the unit is permanently powered by a power supply. Up to 2 months if the unit is operated without power supply (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly). Backup CR2032 lasts up to 10 years, provided the unit is operated permanently from AAA batteries or external power. |
| Connection Interface | USB 2.0 / Micro USB plug. |
| WiFi | IEEE 802.11 b/g/n (2.4Ghz) WPA/WPA2 security. |
| Size | 141mm(H) x 72mm(W) x 18mm(T). |
| Weight | 158g with AAA batteries, (134g – excluding probe and AAA batteries). |
| Case Material | Polycarbonate. |
Alat Perekam Data (Data Logger) Probe Eksternal Suhu Rendah LogTag® TREL-8
Link Produk: TREL-8
Deskripsi
TREL-8 Low Temperature Remote Probe Logger mengukur dan menyimpan hingga 8000 pembacaan suhu pada rentang pengukuran -90°C hingga +40°C (-130°F hingga +104°F) dari sensor suhu probe jarak jauh tipe LogTag® ST10 yang dapat dipertukarkan (tersedia dalam panjang hingga 3 meter (9’10”).
Alat ini ditujukan untuk memantau barang yang disimpan pada suhu rendah, seperti di lingkungan es kering. Menggunakan LogTag® Interface Cradle dan perangkat lunak pendamping LogTag® Analyzer yang tersedia gratis.
TREL-8 mudah dikonfigurasi untuk berbagai kondisi perekaman, termasuk penundaan mulai, interval pengambilan sampel, jumlah pembacaan, dan konfigurasi kondisi untuk mengaktifkan indikator ALERT. Pembacaan diunduh menggunakan LogTag® Analyzer yang menyediakan fasilitas untuk membuat grafik, memperbesar, menampilkan statistik data, dan memungkinkan ekspor data ke aplikasi lain seperti Excel.
Indikator Peringatan Merah memberikan indikasi langsung, tanpa perlu mengakses PC, jika ada pembacaan yang berada di luar batas yang ditentukan saat unit dikonfigurasi. Indikator OK Hijau memberikan konfirmasi visual langsung, tanpa perlu mengakses PC, bahwa unit sedang beroperasi.
(Pasir silika direkomendasikan untuk suhu di bawah -40ºC untuk Perakitan Penyangga)
Botol penyangga & Pasir Silika tidak termasuk
Speksifikasi
| Product Model | TREL-8 |
| External Sensor Measurement Range | -90°C to +40°C (-130°F to +104°F). |
| Operating Temperature Range | -20°C to +40°C (-4°F to +104°F). |
| Storage Temperature Range | -10°C to +55°C (14°F to +131°F). |
| Rated Temperature Reading Accuracy | With the logger case sitting in an environmental temperature between 0°C and 50°C: Better than ±1°C (±1.8°F) for -30°C to +20°C (-22°F to +68°F). Better than ±1.2°C (±2.1°F) for -45°C to -30°C (-49°F to -22°F) and +20°C to +40°C (+68°F to +104°F). Better than ±1.7°C (±3.1°F) for -80°C to -45°C (-112°F to -49°F). Better than ±2.0°C (±3.6°F) for -90°C to -80°C (-130°F to -112°F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Rated Temperature Reading Resolution | 0.1°C (0.2°F) for measurements -80°C to 0°C (-112°F to 32°F). 0.2°C (0.4°F) for measurements 0°C to 18°C (32°F to 64.4°F) and -90°C to -80°C (-130°F to -112°F). 0.3°C (0.5°F) for measurements 18°C to 30°C (64.4°F to 86°F). 0.5°C (0.9°F) for measurements 30°C to 40°C (86°F to 104°F). LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 2 minutes (T90) in moving air (1m/s) for ST10S type. |
| Recording Capacity | 8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging. |
| Sampling Interval | Configurable from 30 seconds to several hours. |
| Logging Start Options | Push button start with optional start delay or specific date & time. |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
| Download Time | Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used. |
| Environmental | IP61. |
| Power Source | CR2450 3V LiMnO2 Battery (Fixed). |
| Battery Life | Storage life of 1 year before ‘start’ (if it is hibernation mode), followed by: 2 – 3 years of normal use (based on 15 minute logging, download data monthly). |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Standard Remote Sensor Cable Length | Standard: 0.5m (19”). Extended: 3m (9’10”) (recommended maximum). |
| Remote Sensor Cable Type | PTFE (FDA food contact rated) coaxial. |
| Size | 86mm(H) x 54.5mm(W) x 8.6mm(T). |
| Weight | 34g. |
| Case Material | Polycarbonate. |
