Description
Features:
1. The hydraulic pump adopts an axial five-piston ultra-high pressure pump, whichworks smoothly and has low noise;
2. The control valve adopts high-precision digital micro-flow valve with high control
precision;
3. The sensor adopts a pressure sensor, which has good reliability;
4. Adopt the principle of automatic racking to strengthen the control of the loadingrate.

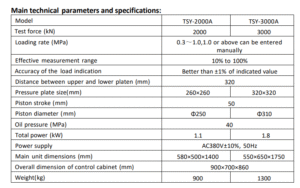

Main technical parameters and specifications:
Model TSY-2000A TSY-3000ATest force (kN) 2000 3000
Loading rate (MPa) 0.3～1.0,1.0 or above can be enteredmanually
Effective measurement range 10% to 100%
Accuracy of the load indication Better than ±1% of indicated value
Distance between upper and lower platen (mm) 320
Pressure plate size(mm) 260×260 320×320
Piston stroke (mm) 50
Piston diameter (mm) Φ250 Φ310
Oil pressure (MPa) 40
Total power (kW) 1.1 1.8
Power supply AC380V±10%, 50Hz
Main unit dimensions (mm) 580×500×1400 550×650×1750Overall dimension of control cabinet (mm) 900×700×860
Weight(kg) 900 1300
