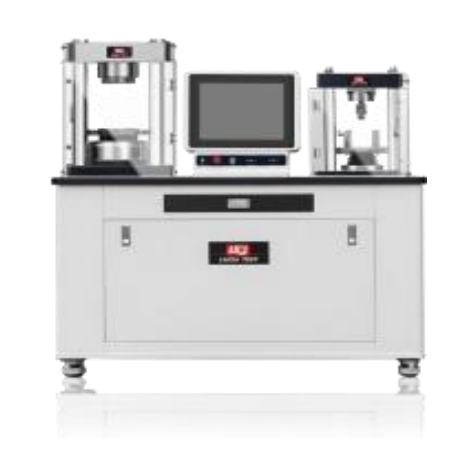

Description
Features:
1. The whole machine adopts physical and chemical board countertop, and the frameadopts static surface electroplating, which is easy to clean and beautiful.
2. The anti-bending part adopts electric oil cylinder, which has high precision, stablecontrol, accurate displacement and force value.
3. The sensor adopts the spoke sensor, which has high precision, stable speedandreciprocation.
4. Servo motor system, silent throughout, low decibel, oil temperature is not easytorise, high efficiency and stability, voltage adopts single-phase 220V, strong versatility, high efficiency and energy saving.
5. The protective cover is made of acrylic transparent material, which is cleanandbeautiful, and the test process can be observed throughout the process.
6. The 40mmx40mm cement compression fixture is made of fully galvanizedmaterial.

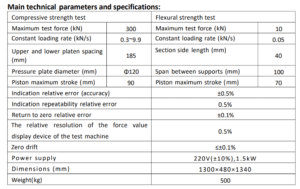

Main technical parameters and specifications:
Compressive strength test Flexural strength test
Maximum test force (kN) 300 Maximum test force (kN) 10
Constant loading rate (kN/s) 0.3~9.9 Constant loading rate (kN/s) 0.05Upper and lower platen spacing
(mm) 185
Section side length (mm)
40
Pressure plate diameter (mm) Φ120 Span between supports (mm) 100
Piston maximum stroke (mm) 90 Piston maximum stroke (mm) 70
Indication relative error (accuracy) ±0.5%
Indication repeatability relative error 0.5%
Return to zero relative error ±0.1%
The relative resolution of the force value
display device of the test machine
0.5%
Zero drift ≤±0.1%
Power supply 220V(±10%),1.5kWDimensions (mm) 1300×480×1340
Weight(kg) 500
