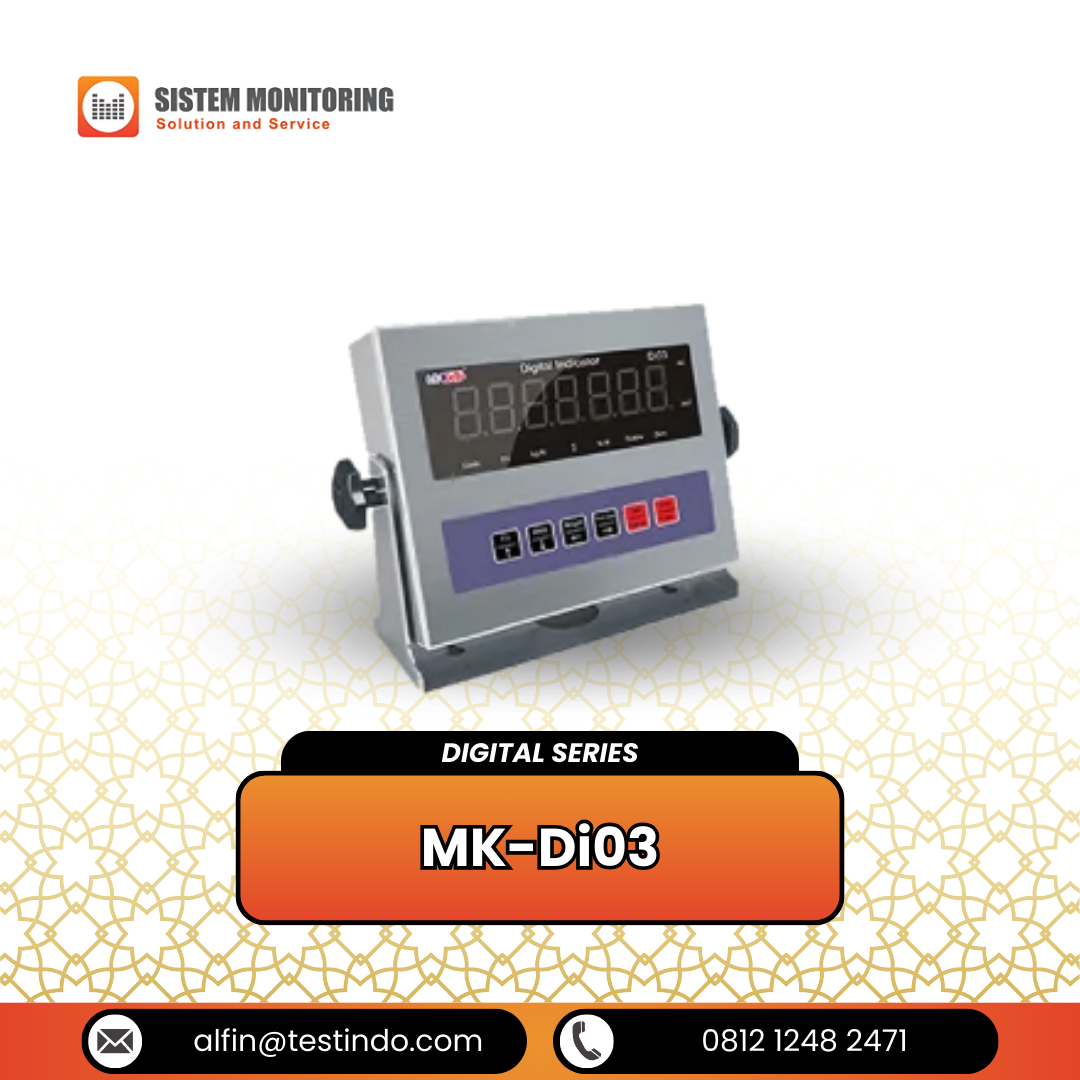

DIGITAL SERIES MK-Di03

Description

Characteristic and functions:

Stainless steel enclosure
Clock function: year, month, date, hour, minute, second, auto leap year, leap month
Calibration switch code
External parallel printer: allow single weigh, fixed printing format, not support printing record checking
Support accumulation, clear, unit switching, by function key checking, printing accumulation data, times…etc
Support regular shutdown, random code decryption function
Input password before calibration and adjusting
Auto networking and auto auto-creating weighing scale system
Automatic and manual corner-difference adjustment
Power on, auto zero-setting range, manual zero-setting range can be set separately, zero tracing range can be set
Random charging by indicator, low power indication and voltage status monitoring
RS232 communication interface, multi communication protocol
Encryption function is available while load cell and indicator is communicating
Digital load cell SN checking, overload record checking function
Scoreboard interface, series port communication port and standard parallel Printer interface,fixed pound printing format
Equipped with EMC protection

Digital load cell interface	RS485, Max transmission distance ≤75m
Transmission speed rate	19200bps
Digital load cell power supply	DC 12V/750mA
Digital load cell connection quantity	1~4 pcs
Digital load cell communication protocol	MK-LUD-P Protocol, MK-SLB-D Protocol
Display	6 LED digital tube with 1.2 inch red light, 7 state instruction
Scoreboard Interface	Current loop serial output, RS232, 600bps, transmission distance ≤100m
Serial communication interface	RS232, 600 ~ 19200bps optional
Printer Interface	Standard parallel print interface, recommend EPSON LQ/300K + II Panasonic
	KX-P1121/1131, POS_58 printer
Indicator power supply	AC: Switch power supply 110V~200V/AC, 50Hz
Operating temperature	0° C ~ 40° C Humidity: ≤85% (RH)
Storage temperature	-10° C ~ 60° C Storage Humidity: ≤95% (RH)
Dimension	293mm (L) x 210mm (W) x 70mm (H)
