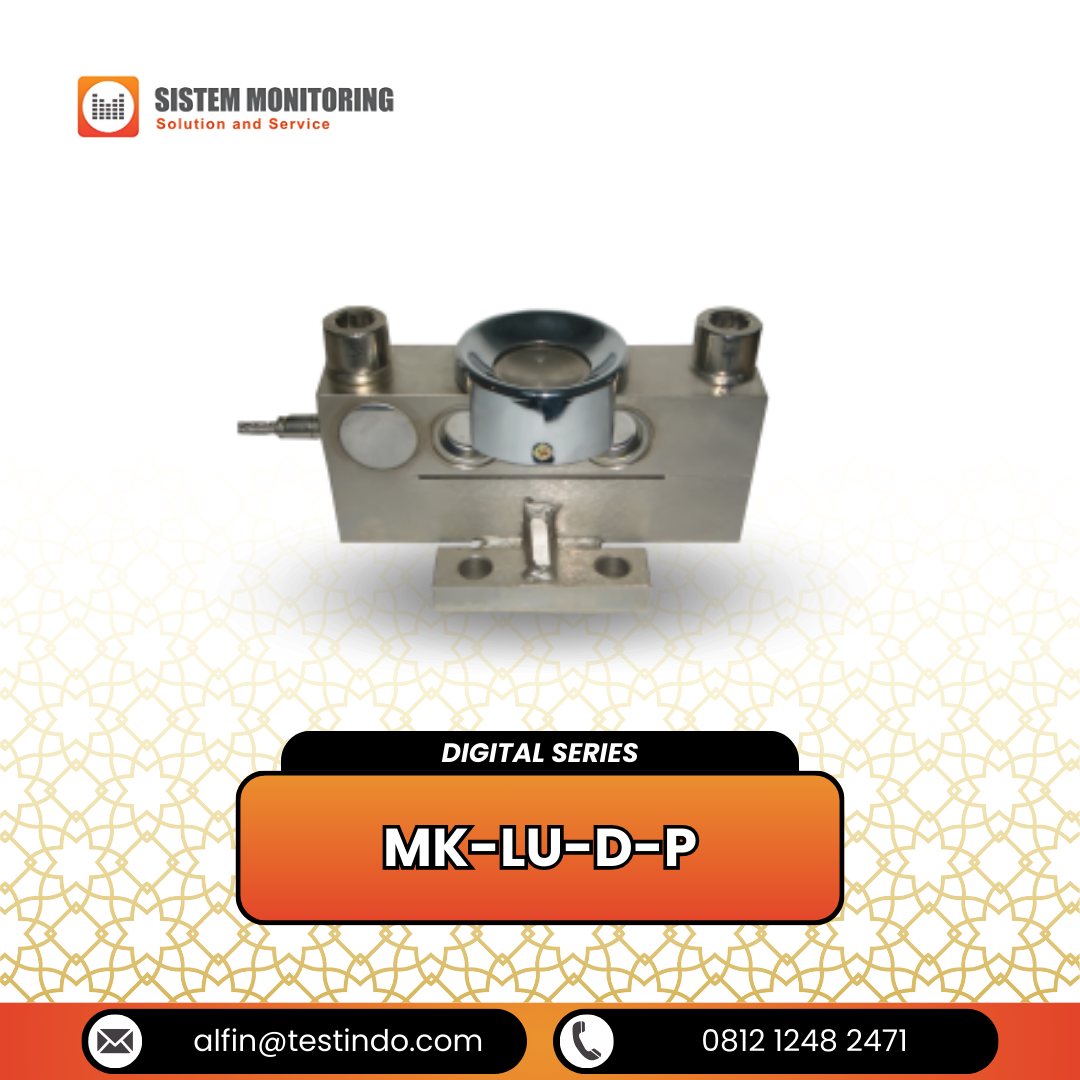

DIGITAL SERIES MK-LU-D-P

FEATURE:

Built in lightening protection
High precision, reliability and super stability
Design of stainless steel ball, cup has super functions in
self-restoring comer pre-adjustment
Anti-wallop and anti side force
Easy to installation good interchangeability
PVC Anti rats cable protection, high temperature
Application to truck scale, railway scale hopper scale and other
welghing equipment
MK-LU-D-U is compatible for MK-Di01-U indicator

Description

Rated capacities	30 t	Temperature effect sensitivity	±0.02%F.S10°C
Rated output	30000	Temperature operating	-30°C~+70°C
Combine error	±0.02%F.S	Maximum safe overload	150%F.S
Creep (30min)	± 0.02%F.S	Excitation, recommended	9-12V DC
Zero balance	±0.1%F.S	Excitation, maximum	20V DC
Communication baud rate	9600 BPS	Protection class	IP 68
Insulation resistance	≥ 2000MΩ	Digital refurbishing	Frequency : 15
TC SPAN	± 0.02%F.S/10°C	Material	Alloy steel
