Description
Spesifikasi Teknis
| Parameter Teknis | Detail |
|---|---|
| Tipe | RK500-07-B |
| Aplikasi | Budidaya laut, limbah sangat korosif, kondisi kompleks, dll |
| Pembersihan Otomatis | – |
| Material Utama | Paduan titanium |
| Ulir (Thread) | Atas: NPT 3/4, Bawah: NPT 3/4 |
| Akurasi | ±1% FS |
| Resolusi | 0.01 NTU (≤10 NTU), 0.1 NTU (>10 NTU) |
| Konsumsi Daya | < 0.2W |
| Suhu Operasional | 0 – +60℃ |
| Rentang | 0–10 NTU, 0–100 NTU, 0–1000 NTU, 0–4000 NTU |
| Catu Daya | 7–30VDC |
| Output | 4–20mA & RS485 (bersamaan) |
| Waktu Respon | 1 detik |
| Ketahanan Tekanan | 0.8 MPa |
| Perlindungan | IP68 |
| Penyimpanan | 10–60℃ @ 20%–90% RH |
| Panjang Kabel | 5 meter (standar) |

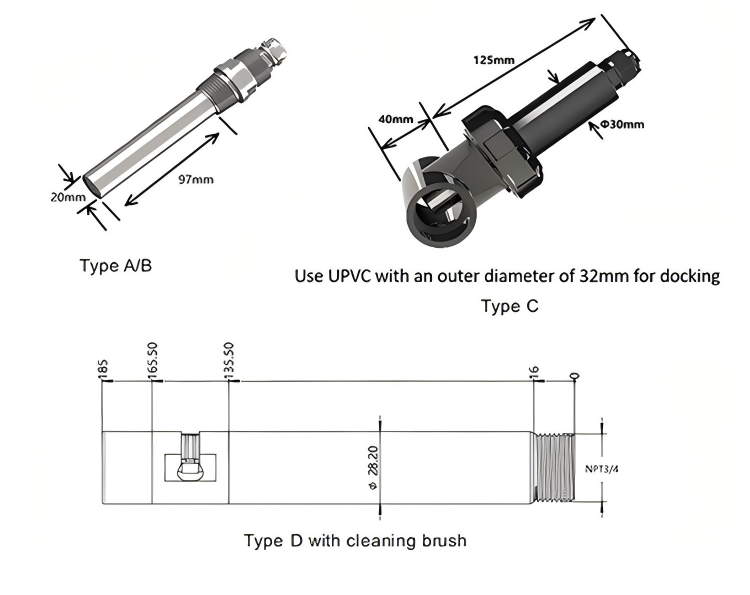

DIMENSION

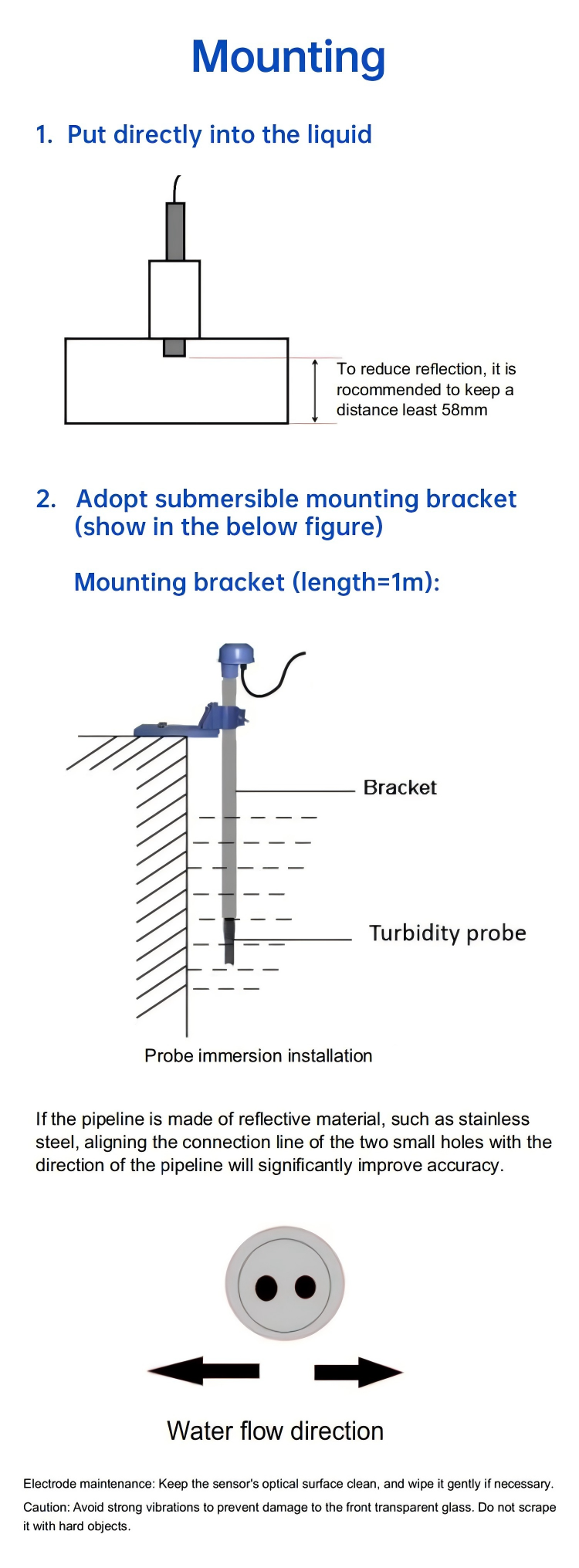

Installation & Usage
- Put directly into the liquid
- Adopt submersible mounting bracket (show in the below figure)
PRODUCT DETAILS
