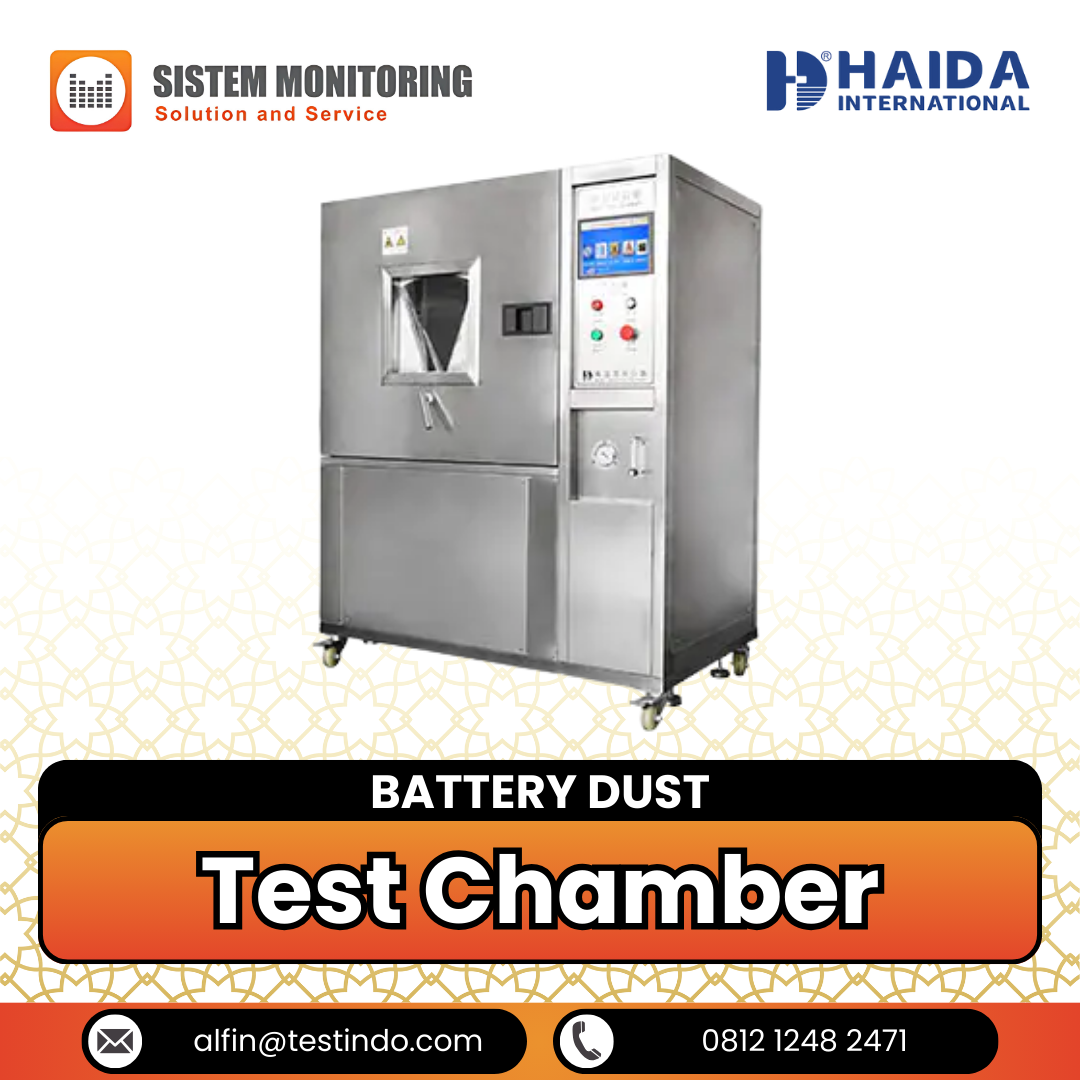

Ruang Uji Debu Baterai Battery Dust Test Chamber

Description

SPESIFIKASI UMUM

Packaging Dimensions: (WxDxH) 1500*1200*1900mm

Power supply source: 3-phase, AC380V±10%,50Hz (can be appointed)

Gross Weight: 400kg

HS Code: 8479899990



Fitur Standar

Item Specification
Internal dimension 800W*800D*800Hmm
External dimension 1300W*1000D*1700Hmm
Test sample Size W20cm- L30cm-D15cm, weight 0.5kg
Chamber material SUS304 Stainless steel
Specifications of square mesh sieve Mesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount 2kg/ m³
Airflow speed No more than 2m/s
Door Left open door with tempered glass door
Controller PLC Touch Screen controller, programmable to set as below cycle:

a. Blowing dust time (Stop/Blow) m/s

b. Cycle time: can be adjusted

c. Pre-set test time: 0s ~99m99s

Vacuum system Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Vacuum pump capacity 60-600 L/H
Fan Centrifugal fan
Safety protection devices Meter over-temperature function, Phase shortage protection, Power short-circuit protection



FITUR DESAIN RUANG

1, Bahan ruang: baja tahan karat SUS#304;

2, Jendela transparan memudahkan untuk mengamati spesimen selama pengujian;

3, kipas angin mengadopsi cangkang baja tahan karat, penyegelan tinggi dan kecepatan sayap, kebisingan rendah;

4, Di dalam cangkang terdapat jenis corong, siklus getaran dapat disesuaikan, bebas debu mengapung di langit yang jatuh hingga meniup lubang bersama-sama.



GAMBAR DESAIN SESUAI IEC60529
