Description

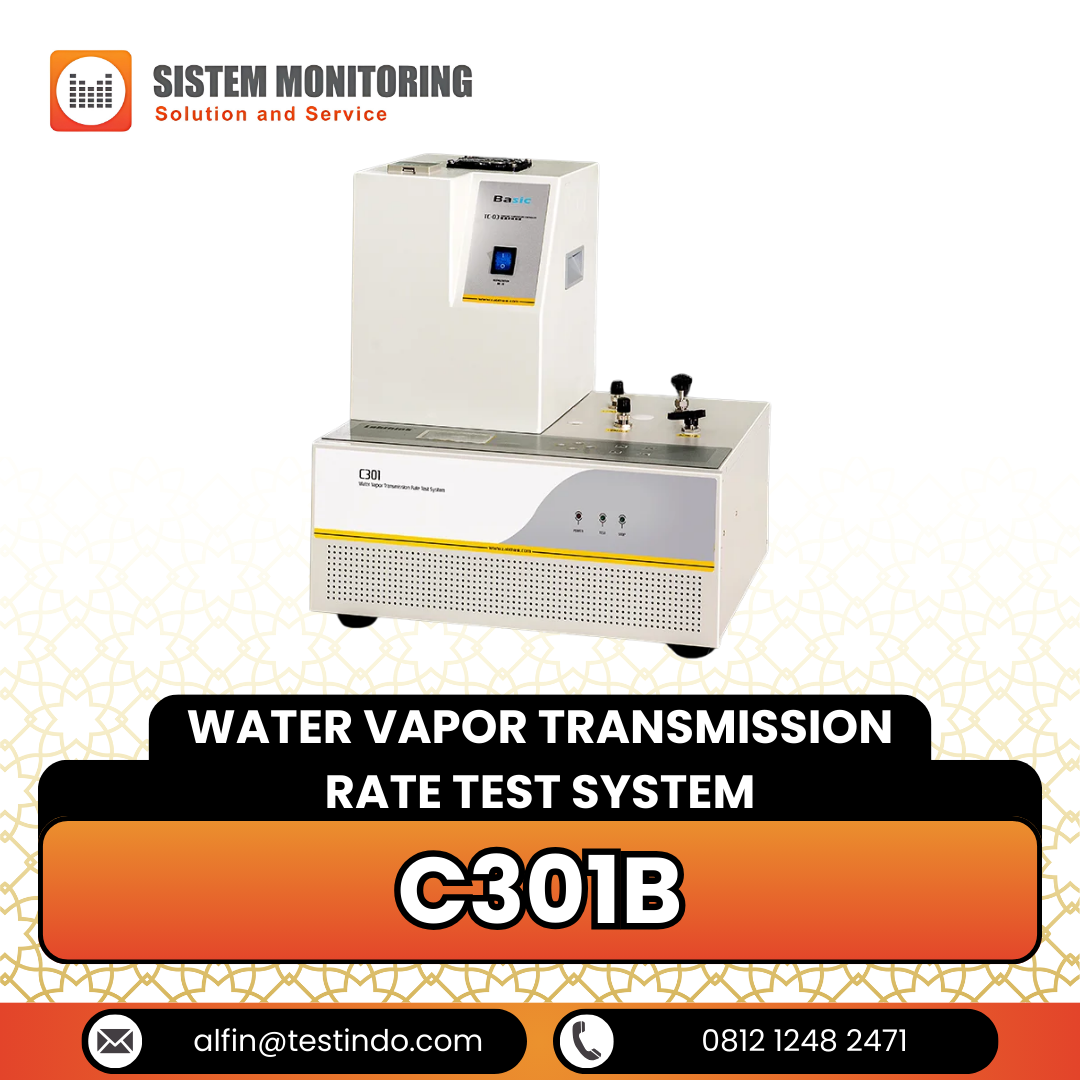

Sistem Uji Laju Transmisi Uap Air C301B dirancang dan diproduksi berdasarkan metode sensor inframerah dan sesuai dengan persyaratan ASTM F1249 dan ISO 15106-2. Instrumen ini dapat digunakan untuk mengukur laju transmisi uap air dari bahan penghalang dengan sifat penghalang kelembaban tinggi dan sedang dengan rentang pengujian yang luas dan efisiensi pengujian yang tinggi. C301B berlaku untuk penentuan permeabilitas uap air dari film plastik, terpal, kertas, paket, dan bahan kemasan relatif lainnya dalam makanan, farmasi, peralatan medis, barang konsumsi, industri fotovoltaik dan elektronik, dll.
Product FeaturesNote1
- Equipped with Labthink patented infrared sensor, conforming to ASTM F1249, non-consumable type with ultra-long service life.
- Support temperature control to satisfy tests under different conditions
- Built-in high-quality stainless steel test cell with better sealing performance
- Imported manual isolation valve and flow regulator are adopted for better sealing performance and lower failure rate
- Industrial computer appearance design, small size and fast cooling
- Reference film is provided for quick calibration
- The system adopts single-chip microcomputer control and can run independently
- The test report can be exported in common formats such as EXCEL and PDF
- Support micro printer, automatically print test data (optional)
- Equipped with RS232 data interface, which can be connected to computer software for curve analysis, data storage, report printing, etc. (optional)
Test Principle
The pre-conditioned specimen is clamped in the test cell, nitrogen with stable relative humidity flows on one side of the specimen while a stream of dry nitrogen flows on the other side. Due to the humidity difference, water vapor permeates through the specimen from the high humidity side into the low humidity side, and is carried to the infrared sensor by the dry nitrogen flow. By analyzing the electrical signals generated by the water vapor, the sensor calculates the water vapor concentration and the water vapor transmission rate.
Standard
ASTM F1249、ISO 15106-2、GB/T 26253、JIS K7129、YBB00092003-2015
Applications
| Applications |
|---|
|
|
Technical Specifications
Table 1: Test Parameters Note2
| Parameters/Model | C301B | |
|---|---|---|
| Testrange | g/(m2·day) (Standard area 50cm2) | 0.1～40 |
| Resolution | g/(m2·day) | 0.1 |
| Test temperature | ℃ | 15～50 |
| Temperature resolution | ℃ | 0.1 |
| Temperature fluctuation | ℃ | ±0.5 |
| Test humidity note3 | %RH | 4%RH～100%RH±2%（Saturated salt solution） |
| Temperature fluctuation | GMP Computer System requirement | Optional |
Table 2: Technical Specifications
| Test Cell | 1 Cell |
|---|---|
| Specimen Size | 3.8” x 3.8”（9.7cm×9.7cm） |
| Specimen Thickness | ≤120 Mil（3mm） |
| Standard test area | 50cm2 |
| Test Gas | 99.999% High purity nitrogen（Outside of supply scope） |
| Gas Pressure | 7.2 PSI / 50 kPa |
| Port Size | 1/8” Metal tube |
| Instrument Dimension | 12.9” H x 16.9” W x 15.7” D (33cm× 43cm× 40cm) |
| Power Supply | 120VAC±10% 60Hz / 220VAC±10% 50Hz（one of two） |
| Net Weight | 50Lbs（23kg） |
Table 3: Product Configuration
| Standard Configuration | Instrument mainframe, TC03 temperature control device, porous ceramic plate ,sampler, vacuum grease |
|---|---|
| Optional Parts | Professional software, GMP Computer System requirement, Micro-printer |
Note 1: The described product functions are subject to the specification in “Technical Parameters”.
Note 2: The parameters in the table are measured in Labthink laboratory by professional operators according to the requirements and conditions stapulated in laboratory environmental standards.
Note 3: Different humidity can be achieved by immersing porous ceramic plate is in different saturated salt solutions, see ASTM E 104.
