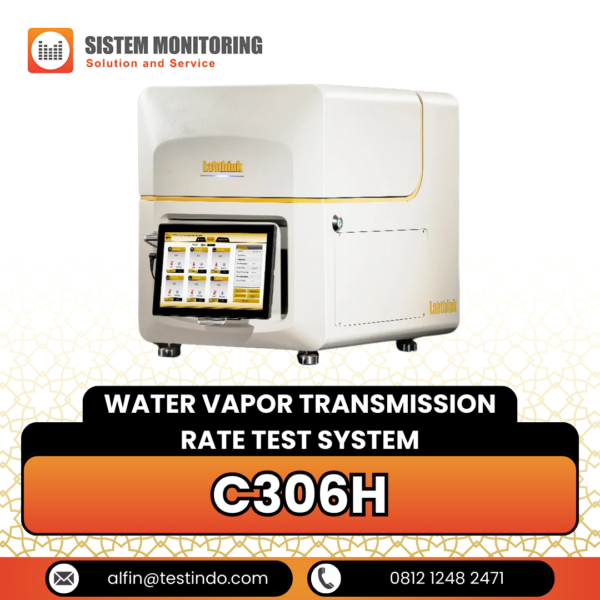

Sistem Uji Laju Transmisi Uap Air Water Vapor Transmission Rate Test System C306H

Sistem Uji Laju Transmisi Uap Air C306H dirancang dan diproduksi berdasarkan metode sensor inframerah dan sesuai dengan persyaratan ASTM F1249 dan ISO 15106-2. Instrumen ini dapat digunakan untuk mengukur laju transmisi uap air dari bahan penghalang dengan sifat penghalang kelembaban tinggi dan sedang dengan rentang pengujian yang luas dan efisiensi pengujian yang tinggi.

Description

Sistem Uji Laju Transmisi Uap Air C306H dirancang dan diproduksi berdasarkan metode sensor inframerah dan sesuai dengan persyaratan ASTM F1249 dan ISO 15106-2. Instrumen ini dapat digunakan untuk mengukur laju transmisi uap air dari bahan penghalang dengan sifat penghalang kelembaban tinggi dan sedang dengan rentang pengujian yang luas dan efisiensi pengujian yang tinggi. C306H berlaku untuk penentuan permeabilitas uap air dari film plastik, terpal, kertas, paket, dan bahan kemasan relatif lainnya dalam makanan, farmasi, peralatan medis, barang konsumsi, fotovoltaik dan industri elektronik, dll.

Product FeaturesNote1

Infrared sensor

  • Equipped with Labthink patented infrared sensor, features a wider test range.
  • Designed conforming to ASTM F1249.
  • Ultra-long service life, non-consumable type.
  • Embedded with over-range warning and automatic protection function.

Accurate data

  • Brand new dome design test chamber and 360° air circulation constant temperature technology ensures better temperature stability.
  • The test chamber is equipped with a high-precision humidity sensor to monitor and record humidity changes in real time.
  • The control of velocity, temperature and relative humidity is automated to realize higher accuracy.

High Efficiency

  • Six independent test cells with a standard area of 50cm2, three times the number of test cells in traditional oxygen permeability testing instruments
  • Six specimens can be tested simultaneously under the same testing condition, delivering independent test result.
  • Within the same time duration, the number of tested specimens is increased from 2 to 6.
  • Automatic specimen clamping saves time and effort. The clamping force is consistent, resulting in better air tightness.

Intelligent control

  • 12’’ touch-screen tablet powered by WindowsTM 10 operating system makes the operation simpler and more convenient.
  • Automatic test mode requires only inputting temperature and humidity, one click startup, the test is fully automated.
  • Intelligent test chamber hood automatically opens and closes with sound and light alert.

Safe and reliable

  • System security — Built-in Labthink’s unique high-end industrial computer prevents system failures caused by computer viruses, ensures operational reliability and data storage security.
  • Operation safety– Equipped with various intelligent sensors which give sound and light alert to ensure safe operation.
  • Performance reliability—the instrument adopts components of global renowned brands, to ensure stable and reliable performance.

Space saving

  • The width of the instrument is only 1/3 of the traditional six-cell instrument, saving space for a laboratory.

Powerful functions

  • Professional test mode provides flexible and diverse control options to meet various needs of scientific research.
  • The system provides oxygen transmission rate curve, oxygen transmission coefficient curve, temperature curve, and humidity curve.
  • Ultra-wide test range to meet the barrier test of various materials (customize).
  • Ultra-wide temperature range to meet the barrier test under different extreme temperatures (optional).

Test Principle

The pre-conditioned specimen is clamped in the test cell, nitrogen with stable relative humidity flows on one side of the specimen while a stream of dry nitrogen flows on the other side. Due to the humidity difference, water vapor permeates through the specimen from the high humidity side into the low humidity side, and is carried to the infrared sensor by the dry nitrogen flow. By analyzing the electrical signals generated by the water vapor, the sensor calculates the water vapor concentration and the water vapor transmission rate.

Standard

ASTM F1249、ISO 15106-2、GB/T 26253、JIS K7129、YBB00092003-2015

Applications

Applications
  • Films
    Water vapor transmission rate test of various plastic films, paper-plastic composite films, coextruded films, aluminized films, aluminum foils, aluminum foil composite films, glass fiber aluminum foil composite films and many others.
  • Sheets
    Water vapor transmission rate test of PP, PVC and PVDC sheets, metal foils, rubber pads, silicon wafers and other sheet materials.

Technical Specifications

Table 1: Test Parameters Note2

Parameters/Model C306H
Test range g/(m2·day) (Standard area 50cm2) 0.02~40
g/(m2·day) (MASK area 5cm2) 0.2~400(Optional)
g/(m2·day) (MASK area 1cm2) 1~2000(Optional)
Resolution g/(m2·day) 0.0001
Repeatability g/(m2·day) 0.02 or 2%,take the greater
Test Temperature 15~50,5~60(Optional)
Temperature fluctuation ±0.15
Test Humidity %RH(Within standard temperature range) 100%,5~90%±2%
Additional Functions DataShieldTM note3 Optional
GMP Computer System requirement Optional
CFR21Part11 Optional

Table 2: Technical Specifications

Test Cell 6 Cells
Specimen Size 4.6” x 4.6”(11.7cm×11.7cm)
Specimen Thickness ≤120 Mil(3mm)
Standard test area 50cm2
Carrier Gas 99.999% High purity nitrogen(Outside of supply scope)
Carrier Gas Pressure ≥40.6 PSI / 280 kPa
Port Size 1/8” Metal tube
Instrument Dimension 23.6” H x 19.2” W x 25.9” D (60cm× 49cm× 66cm)
Power Supply 120VAC±10% 60Hz / 220VAC±10% 50Hz(one of two)
Net Weight 220Lbs(100kg)

Table 3: Product Configuration

Standard Configuration Instrument mainframe, tablet, sampler, vacuum grease, Φ6 mm PU tubing
Optional Parts Air compressor, CFR21Part11, GMP Computer System Requirement, DataShieldTM note3
Note The gas supply port of the instrument is Φ6 mm PU tubing(pressure≥79.7 PSI / 550 kPa), customers need to prepare gas supply.

Note 1: The described product functions are subject to the specification in “Technical Parameters”.
Note 2: The parameters in the table are measured in Labthink laboratory by professional operators according to the requirements and conditions stapulated in laboratory environmental standards.
Note 3: DataShieldTM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShieldTM system which can be configured as required.
