Description

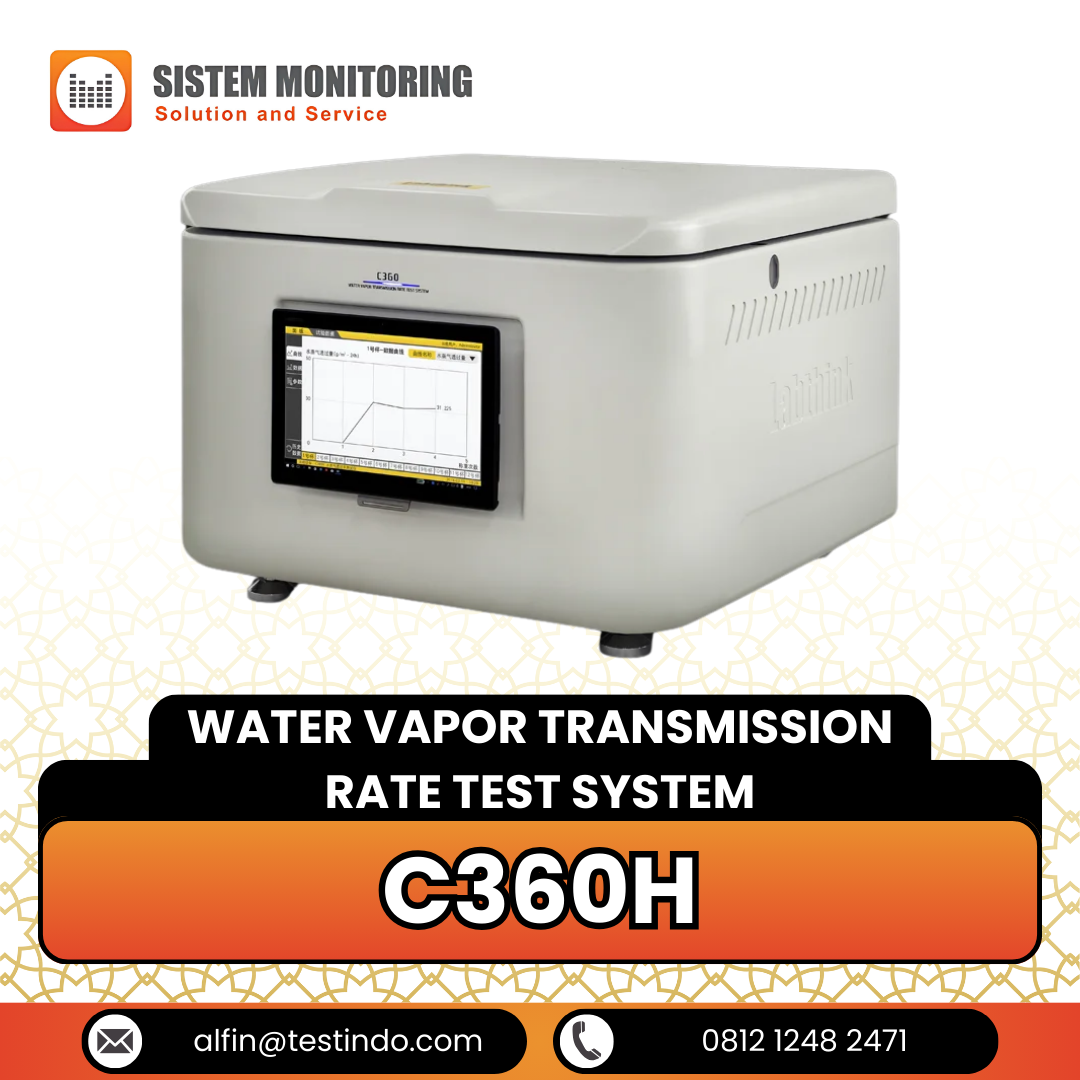

Sistem Uji Laju Transmisi Uap Air C360H, dirancang dan diproduksi berdasarkan metode penentuan gravimetri dan sesuai dengan persyaratan ASTM E96. Instrumen ini dapat digunakan untuk mengukur laju transmisi uap air dari bahan penghalang dengan sifat penghalang kelembaban tinggi, sedang, dan rendah dengan rentang pengujian yang luas dan efisiensi pengujian yang tinggi. Instrumen ini memiliki desain ruang uji yang dipatenkan Labthink dengan beberapa cawan uji. C360H dilengkapi dengan cawan uji yang dibuat secara presisi, keseimbangan yang sangat akurat, perangkat lunak profesional tertanam yang mendukung pengontrolan otomatis suhu, kelembapan, dan laju aliran secara tepat serta menjamin sensitivitas pengujian dan pengulangan hasil pengujian. C360H dapat digunakan untuk menentukan permeabilitas uap air dari film plastik, terpal, kertas, kemasan dan bahan kemasan lainnya dalam makanan, farmasi, peralatan medis, bahan bangunan dan barang konsumsi, dll.
High Precision
- Patented test chamber and test dishes with advanced fluid dynamics and thermodynamic designs.
- Labthink’s proprietary thermostat technology ensures that the test chamber is precisely temperature controlled and remains stable throughout the test.
- Precise and scientific regulation and calculation of testing conditions.
High Efficiency
- 12 test stations
- Supports test modes of desiccant method and water method
Labor Saving
- Automatic humidity and flow rate controlling.
- Desiccator requires no replacement of inner core.
- High-efficiency water vapor generator.
Simplified Operation
- 12’’ touch-screen pad powered by WindowsTM 10 operating system
- Fast automatic testing process
- Optional DataShieldTM software and accessories for automatic data management
Product Features
New Generation Test Chamber and Test Dishes
Patented test chamber and test dishes with advanced hydrodynamic and thermodynamic designs ensure the uniform flow rate over the specimen surface, stable temperature and humidity, creating a uniform and stable testing environment. As a result, the test duration is shortened and the test results will be more accurate.
Excellent Testing Abilities of High and Low Barrier Materials
The testing conditions will be regulated precisely in real time, which ensures the high testing accuracy and repeatability of high and low barrier materials.
Automatic Controlling of Temperature, Humidity and Air Velocity
Labthink’s proprietary thermostat technology ensures that the test chamber is precisely temperature controlled and remains stable throughout the test.
Air velocity is monitored and regulated in real time.
High-efficiency and mist-free automatic humidity regulator meets the requirements for long-term continuous tests.
It is unnecessary to replace the inner core of the desiccator, which can continuously work for 20,000 hours.
Easy-to-use and High-efficiency System
The automatic test mode, combined with the instrument features, eliminates the need for manual adjustments to quickly obtain accurate results, saving training costs and releasing staff from manual monitoring so that they are available for other tasks.
The professional test mode provides flexible and rich instrument control functions to meet individual scientific research needs.
Unique, optional DataShieldTM system facilitates centralized management of user data. It supports a variety of formats of exported data. Reliable security algorithms are used to prevent data leakage. It supports universal wired and wireless LAN, optional private wireless network and third-party software.
User-oriented Service Concept
Adhering to our user-oriented service concept, Labthink has created a customization system that provides flexible and comprehensive customization services for the accommodation of non-standard specimens and packages.
Test Principle
The test specimen is mounted in the test dish which contains water or desiccant inside. The test dish is placed in the test chamber with stable temperature, humidity and air flow. The water vapor permeates through the specimen and into the dry side. By measuring the weight changes of the test dish periodically, water vapor transmission rate and other parameters can be obtained.
Test Standards
ASTM E96, ASTM D1653, ISO 2528, TAPPI T464, DIN 53122-1, GB/T 1037, GB/T 16928, YBB 00092003-2015
Applications
| Basic Applications |
|---|
|
|
|
|
| Extended Applications |
|
|
Technical Specifications
Table 1: Test Parameters Note1
| Parameter | Model C360H | |
|---|---|---|
| Testing Efficiency | 0.01g/(m2·day) ~ 0.5g/(m2·day) | >24 hours |
| 0.0006g/(100in2·day) ~ 0.0323g/(100in2·day) | ||
| 0.5 g/(m2·day)~5 g/(m2·day) | 12 ~ 24 hours | |
| 0.0323g/(100in2·day) ~ 0.3225g/(100in2·day) | ||
| > 5 g/(m2·day) | ≤12 hours | |
| > 0.3225 g/(100in2·day) | ||
| Max. Test Range | Water Method | 10000/n（1-12）g/(m2·day) |
| 645/n（1-12）g/(100in2·day) | ||
| Desiccant Method | 1200g/(m2·day) per piece | |
| 77g/(100in2·day) per piece | ||
| Test Station | 12 | |
| Test Temperature | °C | 20 ~ 55 ±0.2 |
| Test Humidity | RH | 10% ~ 90% ±1% |
| Additional Functions | DataShieldTM Note2 | Optional |
| Computer System required by GMP | Optional | |
| CFR21 Part11 | Optional | |
Table 2: Technical Specifications
| Specimen Size | Φ74mm |
|---|---|
| Specimen Thickness | ≤3mm |
| Test Method | Desiccant Method / Water Method |
| Standard Test Area | 33cm2 |
| Carrier Gas | Compressed Air |
| Drying of Carrier Gas | Long Service-life Desiccator (unnecessary to replace inner core) |
| Humidifying of Carrier Gas | High-efficiency mist-free humidity generator |
| Carrier Gas Pressure | ≥0.6 MPa |
| Port Size | Φ6mm PU Tubing |
Note 1: The parameters in the table are measured by professional operator in Labthink laboratory according to relative requirements for laboratory standard conditions.
Note 2: DataShieldTM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShieldTM system which can be purchase as required.
Note 3: The described product features should be in line with Table 1: Test Parameters.
