Description

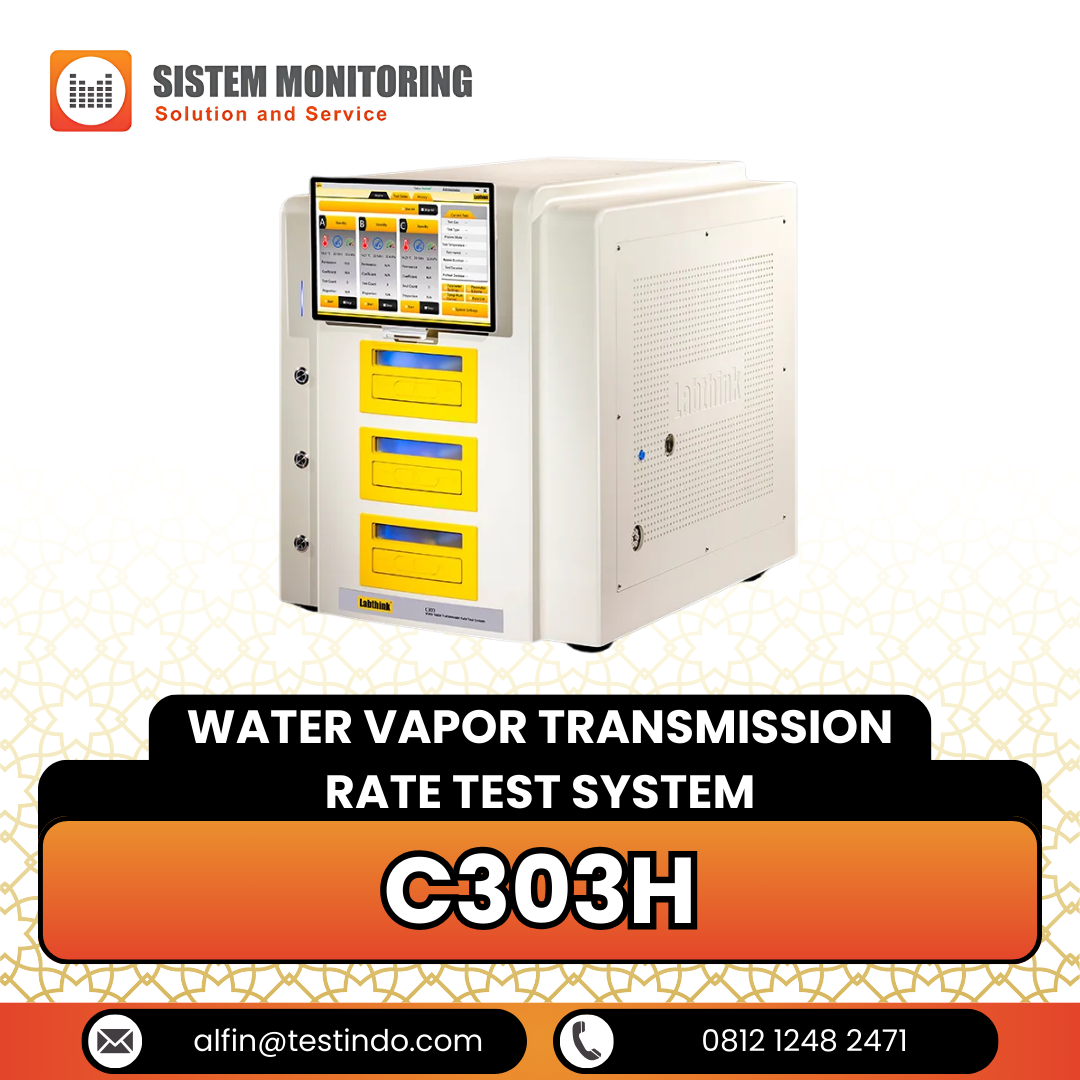

Sistem Uji Laju Transmisi Uap Air C303H didasarkan pada prinsip pengujian sensor uap air inframerah, dirancang dan diproduksi sesuai dengan ASTM F1249, ISO 15106-2 dan standar lainnya untuk memberikan uji transmisi uap air dengan presisi tinggi dan efisiensi tinggi untuk bahan penghalang gas tinggi dan menengah. Sangat cocok untuk menguji kinerja transmisi uap air dari film, lembaran dan bahan terkait di bidang makanan, obat-obatan, peralatan medis, bahan kimia sehari-hari, fotovoltaik, elektronik dan bidang lainnya.
Product FeaturesNote1
Infrared Moisture Sensor
- The Labthink patented technology infrared moisture sensor can obtain lower test limit.
- Designed according to ASTM F1249.
- Long service life, non-consumable.
- It has the functions of over limit alarm and automatic protection.
Accurate Data
- Using 360 ° air circulation constant temperature technology, the temperature stability is better.
- Equipped with high-precision temperature and humidity sensor for real-time monitoring and recording temperature and humidity changes.
- In the test process, the automatic control of flow, temperature and relative humidity is realized, and the accuracy is higher.
- It can achieve higher test repeatability of 0.005 g / (m2·day) .
High Efficient Three-chamber
- Independent three sets of 50cm2 standard area test chamber, in line with the standard requirements of parallel sample detection.
- Three samples are tested at the same time under the same condition, and the data are independent of each other.
- In the same test cycle, the testing number of samples completed increased from 2 to 3.
- Automatic sample clamping, saving time and effort, realizing consistent clamping force and better sealing.
Intelligent Control
- The 12 Inch Touch panel of Windows system is used to control, which is more convenient.
- Automatic mode: input the test temperature and humidity, click one key to start the automatic test.
- New drawer type test chamber, one key automatic in and out, sound and light reminder.
Safe and Reliable
- Safe running: the unique high-end industrial computer of Labthink is embedded to eliminate the system failure caused by computer virus, and ensure the operation reliability and data storage security.
- Safe operation: equipped with optical and other intelligent sensors, sound and light alarm and other intelligent alarms to ensure the safety of operation.
- Safe Performance: the instruments are made of world famous brand components, stable and reliable.
Powerful Functions
- Professional test mode provides flexible and rich control functions to meet the needs for scientific research.
- Provide water vapor transmission curve, water vapor transmission coefficient curve, temperature curve, humidity curve.
- Ultra wide test range, meet the barrier test of various materials. (Customized)
- Ultra wide temperature range to meet the permeability tests at different temperatures. (Customized)
Testing Principle
The pre-treated sample is clamped between the test chambers, the nitrogen with stable relative humidity flows on one side of the film, and the dry nitrogen flows on the other side of the film; due to the existence of humidity difference, water vapor will diffuse from the high humidity side through the film to the low humidity side; on the low humidity side, the water vapor is carried to the infrared water sensor by the flowing dry nitrogen, and different water vapor is generated. The concentration produces different light signals, and the concentration value is obtained through analysis and calculation, and then the water vapor transmission rate of the sample is calculated.
Reference Standards
ASTM F1249, ISO 15106-2, GB/T 26253, JIS K7129, YBB00092003-2015
Test Applications
| Applications |
|---|
|
|
Technical Parameters
Table 1: Test Parameters Note2
| Parameters/Model | C303H | |
|---|---|---|
| Test Scope | g/(m2·day) (standard area 50cm2) | 0.005～40 (standard) 0.005～100 (optional) |
| g/(m2·day) (MASK area 5cm2) | 0.05~400 (optional) | |
| g/(m2·day) (MASK area 1cm2) | 0.25~2000 (optional) | |
| Resolution | g/(m2·day) | 0.0001 |
| Repeatability | g/(m2·day) | 0.005 or2%, whichever is greater |
| Temperature Range | ℃ | 15～50 5~60 (customized) |
| Temperature Fluctuation | ℃ | ±0.05 |
| Humidity Range | %Rh (within standard temperature range) | 5～90%±1% |
| Extended Functions | DataShieldTM Data Shield Note 3 | Optional |
| GMP Computer System Requirements | Optional | |
| CFR21Part11 | Optional | |
Table 2: Technical Specifications
| Test Chamber | 3 sets |
|---|---|
| Sample Size | 4.4” x 4.4”（11.2cm×11.2cm） |
| Sample Thickness | ≤120 Mil（3mm） |
| Standard Test Area | 50cm2 |
| Carrier Gas Specification | 99.999% high purity nitrogen (gas source is prepared by the user) |
| Air Source Pressure | ≥ 40.6 PSI / 280 kPa |
| Interface Size | 1 / 8 “metal tube |
| Dimensions | 23.6” H x 19.6” W x 27.5” D (60cm× 50cm× 70cm) |
| Power Supply | 120VAC ± 10% 60Hz / 220VAC ± 10% 50Hz |
| Net Weight | 220Lbs（100kg） |
Table 3: Product Configuration
| Standard Configuration | Mainframe, tablet computer, sampler, vacuum grease, polyurethane pipe with diameter of 6 mm |
|---|---|
| Options | Air compressor, CFR21Part11, GMP computer system requirements, DataShieldTM Data Shield Notes3 |
| Note | The compressed air inlet of the machine is Φ 6 mm polyurethane pipe (pressure ≥ 79.7 psi / 550 kPa); the air source is prepared by the user. |
Note 1: the product features are subject to the specific notes in the “Technical Parameters” table.
Note 2: the parameters in the table are measured by professional operators in Labthink laboratory according to the requirements and conditions of relevant laboratory environmental standards.
Note 3: DataShieldTM Data Shield system provides safe and reliable data application support. The system can be shared by multiple Labthink products. Please purchase it separately according to the usage.
