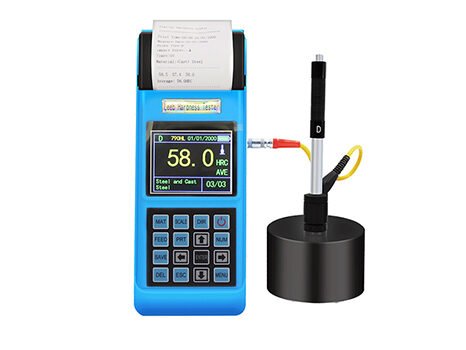

Description
Features
- Layar TFT 240×320 – Tampilan besar & jelas dengan menu interaktif
- Pengujian di Semua Sudut (360°) – Bahkan posisi terbalik
- Konversi Multi-Skala – HL, HV, HB, HRC, HRB, HRA, HS + 3 nilai kekuatan (MPa)
- Material Forged Steel – HB dapat langsung dibaca tanpa tabel konversi
- Penyimpanan Besar – 600 grup data (single value, mean value, impact direction, dll.)
- Alarm Batas Atas & Bawah – Untuk batch testing
- Kalibrasi Pengguna – Menjamin akurasi tinggi
- Konektivitas USB + Software PC – Transfer data, analisis, & laporan
- Printer Termal Berkecepatan Tinggi – Cetak hasil uji instan
- Baterai Isi Ulang Internal – Waktu kerja ±150 jam (tanpa backlight & printing)
- Auto Power Off – Hemat energi
- Desain Industrial – Kokoh, portabel, tahan getaran, guncangan, & interferensi elektromagnetik
- Garansi 2 Tahun – Layanan purna jual terjamin
Main Application
- Rongga cetakan (die cavity)
- Bearing & komponen presisi
- Analisis kegagalan bejana tekan, turbin uap
- Benda kerja besar & berat
- Mesin terpasang permanen
- Permukaan ruang sempit (hollow space)
- Identifikasi material logam di gudang
- Pengujian cepat multi-titik untuk benda besar
Technical Specifications
| Measuring Range | HLD(170-960),HRC(17.9-69.5),HB(19-651),HV(80-1042),HS (30.6-102.6),HRA(59.1-88),HRB (13.5-101.7),also can customized |
| Impact Directions | Up, down, horizontal, slanting up, slanting down |
| Measuring Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel |
| Standards | ASTM A956、DIN50156-1、GB/T17394-1998 |
| Hardness Scales | HL、HB、HRB、HRC、HRA、HV、HS. |
| Tensile Strenght | 374 to 2652 N/m 2 |
| Display | 240*320 TFT display |
| Memory | 600 groups max.(relative to impact times 32~1) |
| Work Voltage | 9V/500mA. |
| Interface Port | USB2.0 |

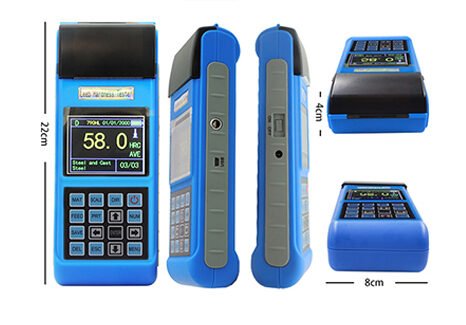

| Dimensions | 210 * 85 * 45mm (host). |
| Weight | 0.6kg (host). |
| Continuous Working Period | about 150hours(With backlight off, no printing) |

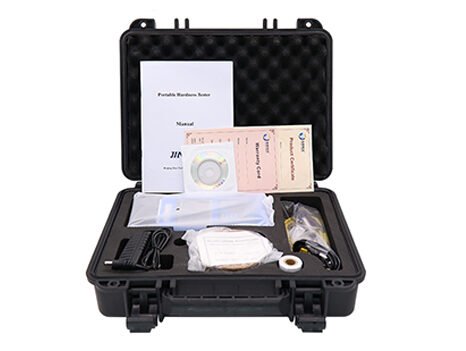

Standard Configuration
| No. | Item | Quantity | Remarks | |
| Confi. | 1 | Main unit | 1 | |
| 2 | D type impact device | 1 | With cable | |
| 3 | Standard test block | 1 | ||
| 4 | Cleaning brush (I) | 1 | ||
| 5 | Small support ring | 1 | ||
| 6 | Battery Charger | 1 | ||
| 7 | Manual | 1 | ||
| 8 | Paper for printing | 1 | ||
| 9 | Data Pro software | 1 | ||
| 10 | Communication cable | 1 | ||
| 11 | Package case | 1 |
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 35 × 32 × 13 cm |
| Measuring Range | HLD(170-960),HRC(17.9-69.5),HB(19-651),HV(80-1042),HS (30.6-102.6),HRA(59.1-88),HRB (13.5-101.7),also can customized |
| Impact Directions | Up, down, horizontal, slanting up, slanting down |
| Measuring Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel |
| Standards | ASTM A956、DIN50156-1、GB/T17394-1998 |
| Hardness Scales | HL、HB、HRB、HRC、HRA、HV、HS |
| Tensile Strenght | 374 to 2652 N/m 2 |
| Display | 240*320 TFT display |
