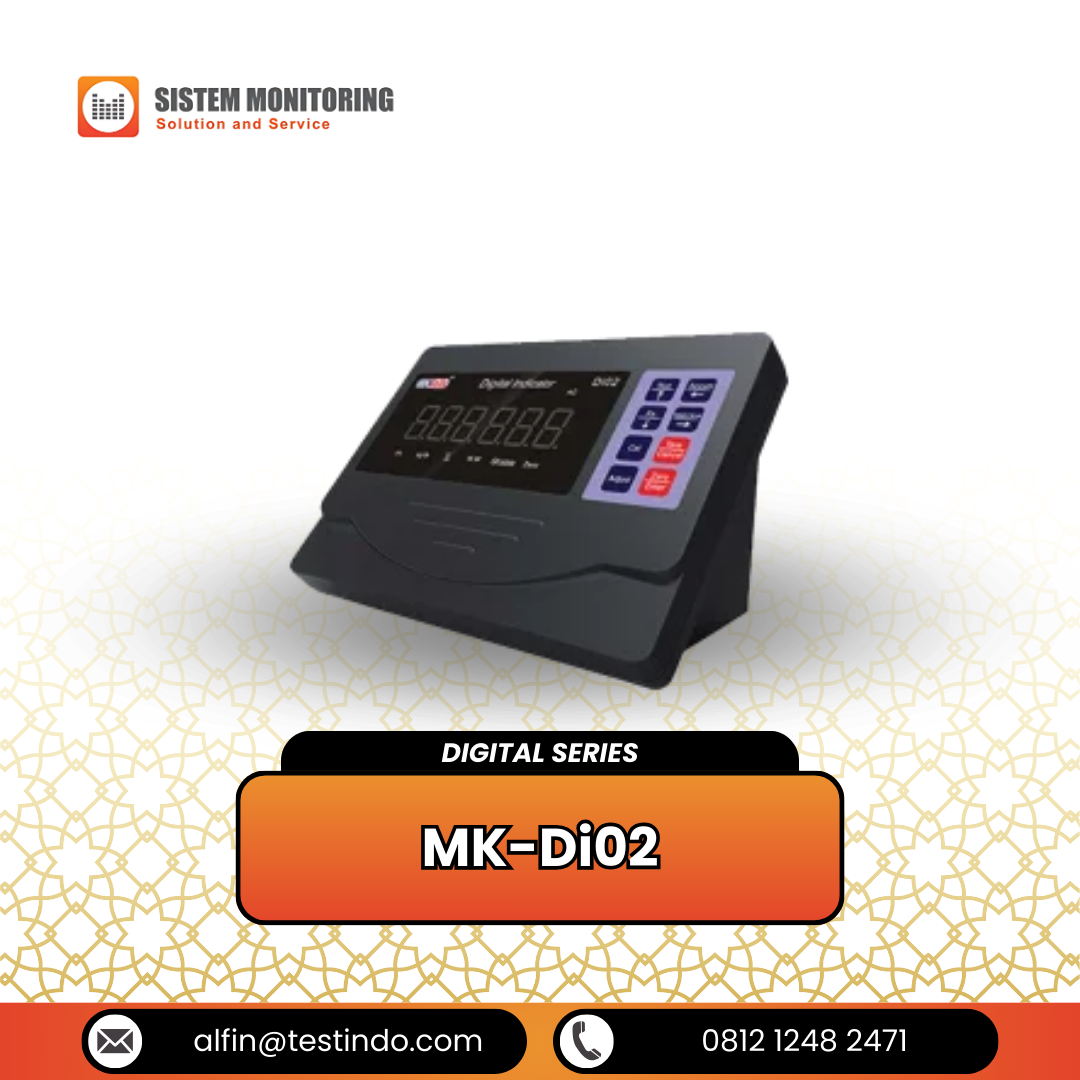

DIGITAL SERIES MK-Di02

Description

Plastic housing
Calibration switch code
Allow single weigh, fixed printing format, not support printing record checking
Support regular shutdown, random code decryption function
Input password before calibration and adjusting
Auto networking and auto auto-creating weighing scale system
Automatic and manual corner-difference adjustment
Power on, auto zero-setting range, manual zero-setting range can be set separately, zero tracing range can be set
Random charging by indicator
RS232 communication interface, multi communication protocol
Encryption function is available while load cell and indicator is communicating
Digital load cell SN checking, overload record checking function
Equipped with EMC protection

ㅤ

Parameter	Specification
Digital load cell interface	RS485, Max transmission distance ≤75m
Transmission speed rate	19200 bps
Digital load cell power supply	DC 12V/750mA
Digital load cell connection quantity	1~4 pcs
Digital load cell communication protocol	MK-LUD-P Protocol, MK-SLB-D Protocol
Display	6 LED digital tube with 1.2 inch red light, 7 state instruction
Serial communication interface	RS232, 600~19200bps optional
Indicator power supply	AC: Switch power supply 110V~200V/AC, 50Hz
Operating temperature	0°C~40°C, Humidity: ≤85% (RH)
Storage temperature	-10°C~60°C, Storage Humidity: ≤95% (RH)
