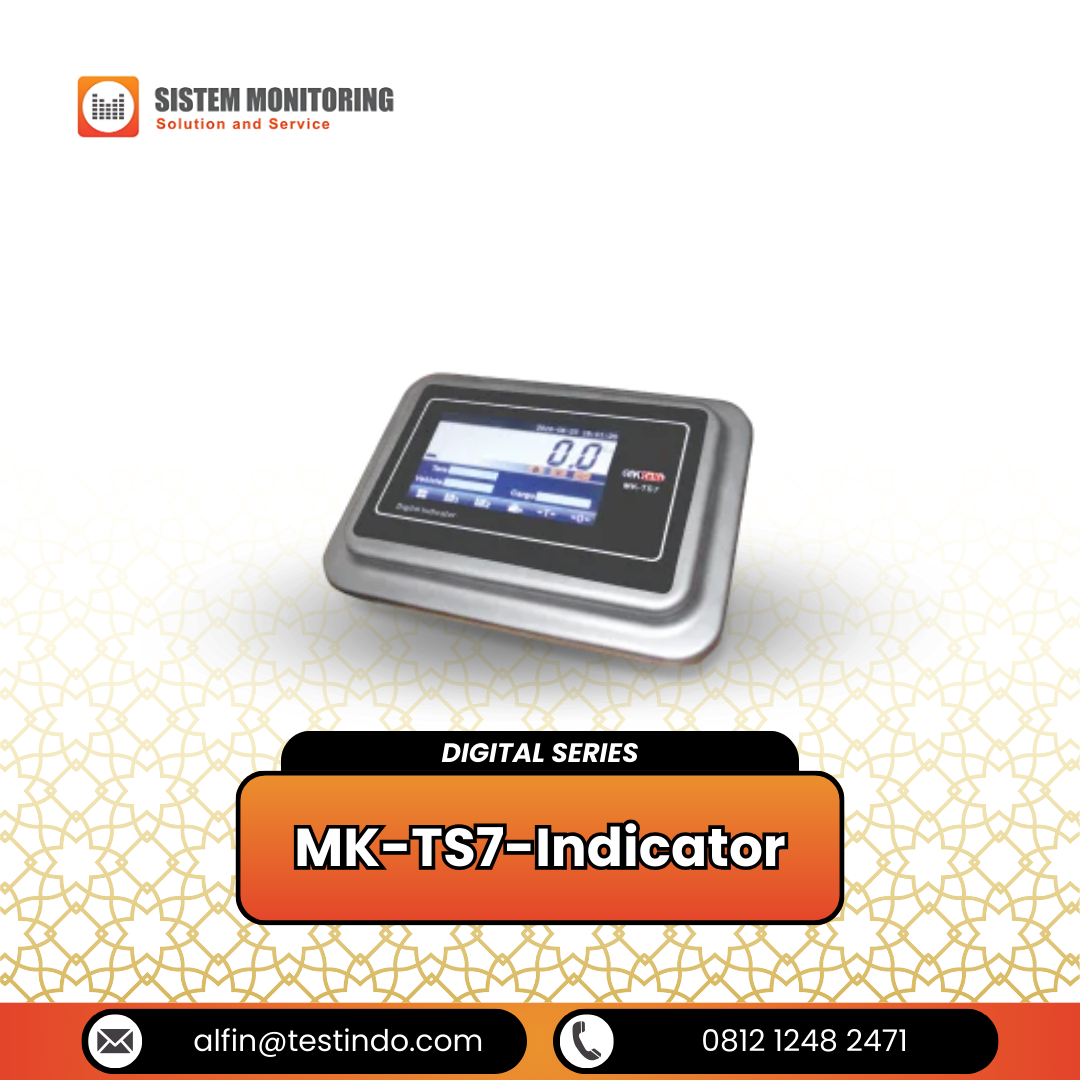

DIGITAL SERIES MK-TS7-Indicator

7inch800*480 TFT color display
High precise touch operation and quick reaction speed, no need for external keyboard support
Support Ethernet interface, RS232, RS485, parallel printing interface and scoreboard interface
Various interface for digital scale adjustment and make full use of the digital function for truck scale
Abnormal condition reminding with clear information and instruction for error solution
Support English touch scoreboard input and make words editing easier
Various scale analytic interface and make error solution easier
Supporting column load cells with angle test (Optional)
Multi level management for user, maintenance people and manufacturer
Support routine U-P communications protocol
Isolated load cell with allexternal connection device in electric part and the load cell has no influence the external electric leakage, the load cell interface of indicator has strong anti surge and static protection
Type setting function for printing weighing note

Category: Digital Series

Description

Digital load cell interface : RS-485, total cable 75 m if connecting 12 pcs load cells
Transmission rate : 9600, 19200 bps;
Power supply : DC12V/750mA
Load cells numbers : 1~16pcs
Communication protocols : U-P protocol
Display mode : 7 inch 800 x 480 TFT color display;
Keyboard : Resistive touch screen
Screen interface : 20mA current loop constant current serial output baud rate 600, transmission distance ≤ 100m
Serial communication interface : Standard: RS232 and RS485, baud rate 600~19200 optional
Printer interface : Standard parallel printer interface, suitable with EPSON L
Q-300K + II, EPSON: Q-300K, EPSON LQ- 680K, EPSON L
Q-730K, EPSON LQ-1600K (+), KX-P1131, KX-P1121,
POS58IV, DS-300 or AB-30OK
Ethernet interface : 10/100mbps
Data storage : 1000 sets of tare, 4500 sets of new weighing Records, 300 set of new incomplete weighing
Power supply : AC 110~220V, 50/60Hz:

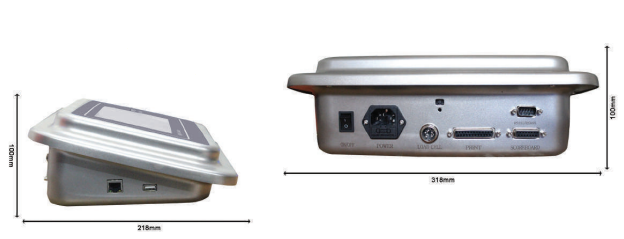

Dimensions : 318 x 218 x 100mm
Weight : Approx 2.7 kg
